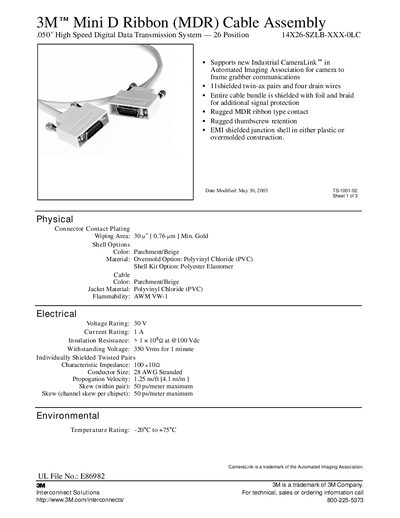

3M Mini D Ribbon (MDR) Cable Assembly is a high-performance data transmission cable from 3M company. It supports Industrial CameraLink, using 11 shielded twin-ax pairs and four drain wires. The entire cable bundle is shielded with foil and braid for additional signal protection.
The 3M Mini D Ribbon (MDR) cable assembly provides a high‑speed digital data transmission system for CameraLink applications, supporting both medium and full configurations. It features 11 shielded twin‑ax pairs, four drain wires, and a fully shielded foil‑and‑braid cable bundle for signal protection.
Key specifications include a 30 V voltage rating, 1 A current rating, 100 Ω characteristic impedance, and operation from –20 °C to +75 °C. The assembly is available in parchment/beige PVC jacket with optional overmolded shells, and ordering options range from 1 m to 10 m lengths.
| Voltage Rating | 30 V |
|---|---|
| Current Rating | 1 A |
| Insulation Resistance | > 1 × 10⁸ Ω at 100 Vdc |
| Withstanding Voltage | 350 Vrms for 1 minute |
| Temperature Rating | -20 °C to +75 °C |
| Flammability | AWM VW-1 |
The cable assembly is rated for 30 V.
It contains 11 shielded twin‑ax pairs and four drain wires.
The assembly can operate from –20 °C to +75 °C.
Use the 3341‑31 jacksocket for panel mounting.
