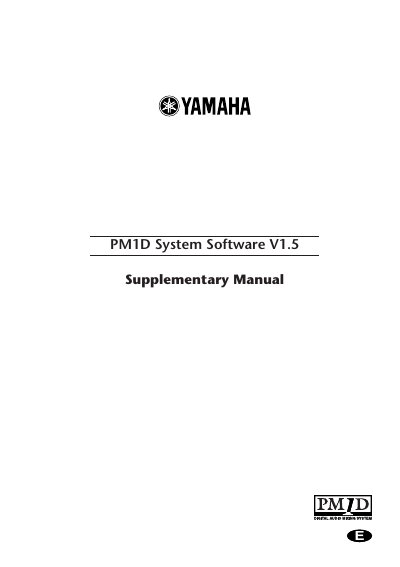

Yamaha PM1D System Software V1.5 Supplementary Manual
This document serves as a supplementary guide for the Yamaha PM1D digital mixing console, specifically covering updates introduced in System Software V1.5. It explains new operational modes such as Dual Console and Cascade connections, along with enhanced connectivity options via GPI and REMOTE connectors.
The manual details various software improvements including the Fader Start function, Tap Tempo capability, and expanded User Define settings for input channel assignments. Additional features covered include Mix Minus settings, Auto Store/Global Paste functions, MIDI control changes, Manual Fading, USB PC connections, and oscillator enhancements.
Yamaha PM1D specifications
| Software Version | V1.5 |
|---|---|
| Connector Type (GPI) | D-sub 25 pin |
| Connector Type (REMOTE) | D-sub 9-pin |
Source: Yamaha PM1D System Software V1.5 Supplementary Manual
