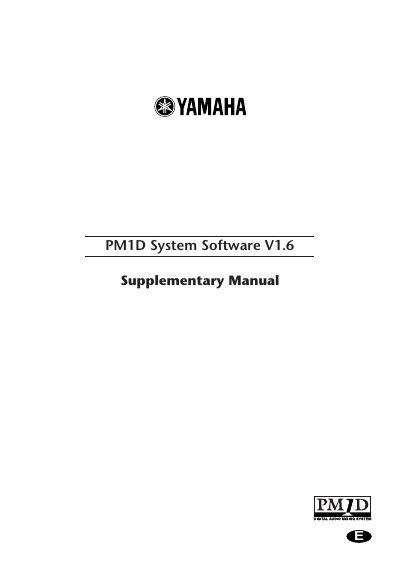

This manual describes the additions and changes in PM1D System Software V1.6, as well as improvements to functions that were added in V1.5.
This document serves as a supplementary guide for the Yamaha PM1D digital audio mixing system, specifically covering updates introduced in system software version 1.6. It explains new functionalities and refinements to existing features added in previous versions, such as V1.5.
Key updates include enhancements to panel assignments for ST IN channels, the addition of channel name areas on EQ and routing screens, and new capabilities for DCA auto-naming and input channel auto-naming. The manual also covers advanced features like surround panning, selective recall, and extended parameter locking options.
V1.6 includes improvements to Panel Assign and Unit Name functions, channel name areas on EQ and LCR screens, DCA and Input Channel Auto Naming, Pan Nominal Position, DCA Unity, Scene Link Event, Selective Recall, Extended Recall Safe functionality, Clear Library, attenuator range expansion, Global Channel Copy, Input Meter Bridge, Parameter/Console Lock, Surround panning, a multi-band dynamics processor, File transfer mode, and additional preference items.
Yes, the limitation on ST IN channel combinations found in V1.5 has been removed, allowing any two consecutive ST IN channels (e.g., 1/2 and 5/6) to be combined freely.
The functionality of the input channel attenuators has been expanded to allow cut/boost in a range of -96 to +24 dB.
Yes, the Selective Recall function allows you to specify for each scene which parameters or channels will be excluded from recall when that scene is recalled.
