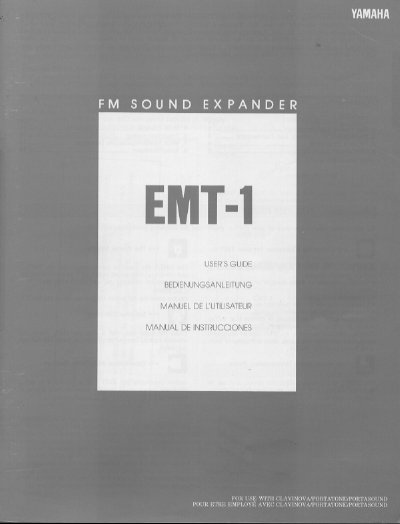

Yamaha EMT-1 FM Sound Expander User's Manual
The Yamaha EMT-1 is a sophisticated FM Sound Expander incorporating digital synthesis technology to enhance keyboards with MIDI interfaces. It features 32 superb voices selectable via front-panel buttons, including variations in tonal quality and attack speed using BRIGHT, MELLOW, FAST, and SLOW controls.
The document details system configurations for use alone or with other EM-series devices like the EMT-10 and EMQ-1. It provides instructions on power supply selection (PA-1, PA-4, PA-5), physical mounting using included holders, and connection methods via LINE OUT, AUX IN, and MIDI connectors.
All Yamaha EMT-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which power adaptors are compatible with the EMT-10?
You must use the Yamaha Power Adaptor PA-4 (in the U.S., PA-40) or PA-5. Using another adaptor will damage the unit.
From: Yamaha EMT-10 AWM Expander Module Tone Generator User's Guide
Can the EMT-10 be powered by another EM-Series unit?
Yes, you can connect the DC OUT jack of one EM-Series unit to the DC IN jack of another, provided the total maximum current does not exceed 2 A.
From: Yamaha EMT-10 AWM Expander Module Tone Generator User's Guide
Which power adaptors are compatible with the EMT-1?
Use ONLY Yamaha PA-1, PA-4 (PA-40 in U.S.), or PA-5 Power Adaptors.
Can the EMT-1 power other EM-series devices?
Yes, using the DC OUT jack and a compatible power adaptor like the PA-5.
