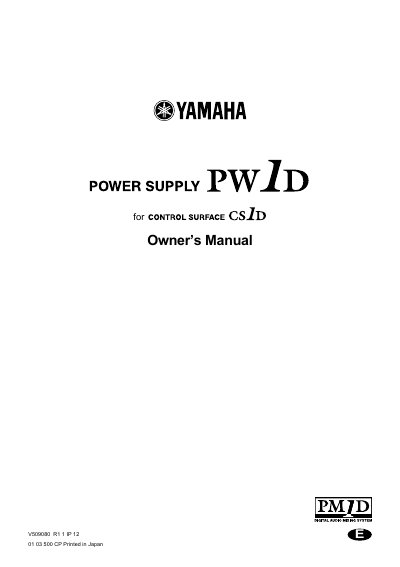

Yamaha PW1D Power Supply Owner's Manual
User Manual 12 pages · 179 KB · EN
The Yamaha PW1D is a power supply unit designed specifically for the CS1D Yamaha control surface. It features a dedicated connection cable and includes a power switch and indicator on the front panel. The unit supports both 120V (60Hz) and 230V (50Hz) inputs depending on the region.
Read onlineYamaha PW1D specifications
| Power consumption | 400 W |
|---|---|
| Operating temperature | 10-35 °C |
| Dimensions (W×H×D) | 480 mm × 97.5 mm × 368.5 mm |
| Weight | 9.6 kg |
All Yamaha PW1D documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What clearance should be left above the device when installing it?
Leave at least 10 cm of airflow space above the panel when mounting the unit.
What is the operating temperature range of the unit?
The device operates between 10 °C and 35 °C.
What is the operating temperature range for the PW1D?
The power supply unit operating temperature is between 10°C and 35°C (58°F and 95°F).
How should the power cord be connected?
Affix the power cable plug using the attached screws so that the cable will not be unplugged accidentally.
