Key facts
- Brand
- Yamaha
- Model
- MV100
- Category
- Audio Power Amplifier
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-12
Start here

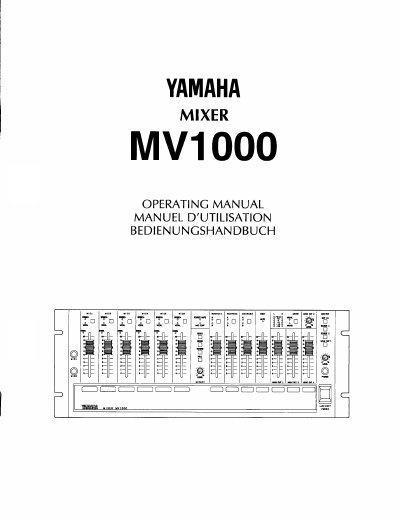

Yamaha MV1000 Mixer Operating Manual
The Yamaha MV1000 is a first-class mixing product designed for event-type applications, featuring facilities for connecting video alongside audio. It includes six microphone input channels with high and low EQ controls, speech/vocal switches, noise gating, and adjustable compression to even out levels.
The unit provides seven sets of stereo inputs, including one specialized Background Music (BGM) channel that can automatically mute when other sources are active. It features a SOURCE MUTE system for "ducking" background music during announcements. Additionally, the mixer offers two video inputs and output, allowing operators to switch between video sources while maintaining a full stereo sound mix.
Yamaha MV100 specifications
| Total harmonic distortion | Less than 0.1% |
|---|---|
| Channel separation | Over 50 dB |
| Equalizer characteristics | +/- 15 dB (100 Hz, 12 kHz) |
| Power supply | AC adaptor (DC + 12V) |
| Dimensions (W x H x D) | 220x45.5x 217 mm |
All Yamaha MV100 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What types of applications is the MV1000 designed for?
The unit is designed for event-type applications that involve mixing speaking and music, as well as connecting video.
How many microphone input channels does the mixer have?
There are six microphone input channels available on the unit.
What type of power supply is required for the MV100?
The unit requires a DC + 12V power supply, specifically using the YAMAHA PA-1B or PA-5 AC adaptor.
How many input channels does the MV100 have?
The MV100 is equipped with facilities for four inputs and stereo output.
