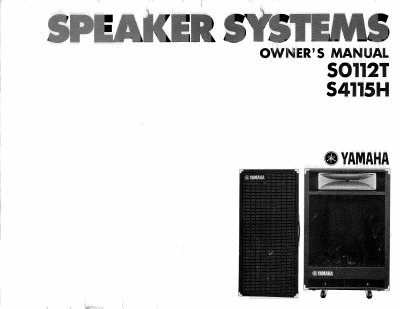

Yamaha S0112T/S4115H Speaker Systems Owner's Manual
This manual covers the Yamaha S0112T and S4115H speaker systems, which feature high efficiency and reliable sound technology suitable for PA systems. The S0112T model utilizes a 12-inch and 10-inch woofer combined with four tweeters, while the S4115H employs a special 15-inch woofer, a high-frequency driver, and a horn. Both systems are designed to deliver excellent directional dispersion and rich tonal fidelity.
Read onlineYamaha S4115H specifications
| Continuous Program Power Rating | 80 Watts (S0112T), 100 Watts (S4115H) |
|---|---|
| Frequency Response | 70Hz to 13KHz (S0112T), 70Hz to 15KHz (S4115H) |
| Nominal Impedance | 8 ohms |
| Enclosure Type | Bass Reflex (S0112T), Front Loaded and Bass Reflex (S4115H) |
| Net Weight | 29Kg (S0112T), 54Kg (S4115H) |
All Yamaha S4115H documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the power rating of the S0112T and S4115H?
The S0112T has a continuous program power rating of 80 Watts, while the S4115H is rated at 100 Watts.
What is the system impedance for these speakers?
The system impedance for both the S0112T and S4115H is 8 ohms.
What is the nominal impedance of the S4115HII?
The nominal impedance of the S4115HII is 8 ohms.
From: Yamaha S4115HII Sound Reinforcement Speaker System Operating Manual
Can I connect more than two speaker units in parallel?
No, you should never connect more than two speaker units in parallel unless using a power amplifier designed to operate with a load impedance lower than 4 ohms.
From: Yamaha S4115HII Sound Reinforcement Speaker System Operating Manual
