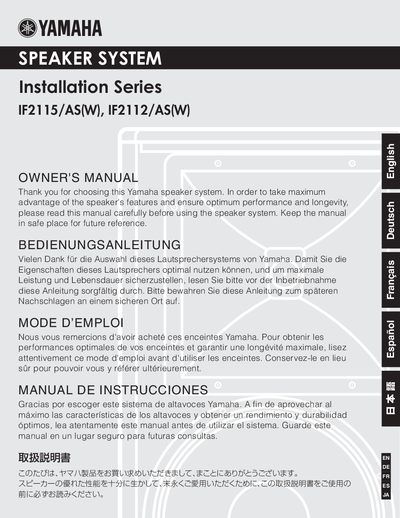

Yamaha IF2115/IF2112 AS Speaker System Owner's Manual
The Yamaha IF2115 and IF2112 are professional loudspeaker systems designed for high-performance audio applications. This Owner's Manual guides users through setup procedures, including selecting between Bi-Amp or Passive drive modes and configuring Neutrik Speakon connections. It also details safety precautions regarding power amplifier matching, physical installation stability, and proper handling to prevent damage.
Read onlineYamaha IF2115 specifications
| Frequency Range (-10dB) | 50 Hz — 20k Hz (IF2115); 45 Hz - 20k Hz (IF2112) |
|---|---|
| Frequency Range (+3dB) | 70 Hz — 20k Hz (IF2115); 60 Hz — 20k Hz (IF2112) |
| Nominal Impedance | 8 ohms |
| Power Rating (AES) | 600 W2 LF: 700 W HF: 110 W |
| Sensitivity (1W @1m) | 96dB SPL (IF2115); 97dB SPL (IF2112) |
Source: Yamaha IF2115/IF2112 AS Speaker System Owner's Manual
All Yamaha IF2115 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I switch between Bi-Amp and Passive modes?
Select the Bi-amp mode or Passive mode using the switch, but do not change the setting while the speaker is in use.
What power amplifier output should I match with these speakers?
Ensure the amplifier's power output matches the speakers' power capacity to avoid damage from clipping.
What is the maximum weight capacity per suspension point for this speaker?
The strength of the suspension points on the speaker is 60 kg per point maximum.
How many eye bolts are required for a safe suspended installation?
You must use three or more eye bolts for suspended installations.
