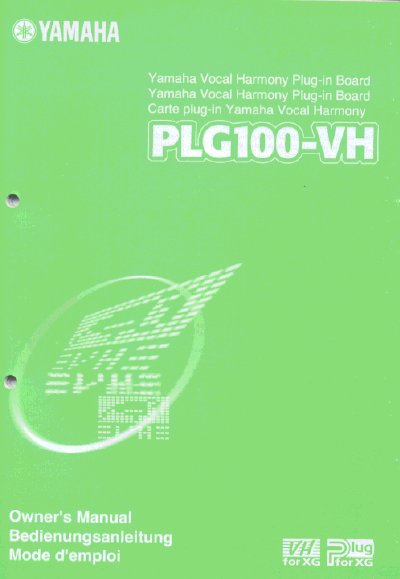

Yamaha PLG100-VH Vocal Harmony Plug-in Board Owner's Manual
The Yamaha PLG100-VH is a vocal harmony plug-in board designed to expand tone generators and sound cards compatible with the XG Plug-in System. It processes voice input via a microphone or A/D inputs to produce authentic four-part harmonies, including the original voice.
Key features include control over harmony notes via MIDI keyboard or sequencer, automatic chord-based harmony changes, and effects such as gender changing (male/female), vibrato, volume, pan, and detuning. The board requires an XG-compatible host device like the MU128, MU100, or SW1000XG.
Yamaha PLG100-VH specifications
| Maximum harmony notes | 3 |
|---|---|
| Effect Types | 4 (Vocoder Harmony, Chordal Harmony, Detune Harmony, Chromatic Harmony) |
| Voice controls | Gender change, Vibrato, Volume, Pan, Detune |
| Dimensions (W x D x H) | 138.5 x 89 x 8.5 mm |
| Weight | 53g |
Source: Yamaha PLG100-VH Vocal Harmony Plug-in Board Owner's Manual
All Yamaha PLG100-VH documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What harmony types does the VH Effect Editor support?
The editor supports four separate types: Vocoder, Chordal, Detune, and Chromatic.
From: Yamaha VH Effect Editor Owner's Manual for PLG100-VH Vocal Harmony Plug-in Board
Can I use the panel controls on an external tone generator while editing?
No, you should not use any of the panel controls on an external tone generator while editing the Harmony effect with the VH Effect Editor.
From: Yamaha VH Effect Editor Owner's Manual for PLG100-VH Vocal Harmony Plug-in Board
What instruments are compatible with the PLG100-VH?
The PLG100-VH is designed for use with the MU128 Tone Generator, other MU-series instruments, and the SW1000XG PCI Audio/MIDI Card.
From: Yamaha PLG100-VH Vocal Harmony Plug-in Board Owner's Manual
What software is required to edit PLG100-VH settings?
Settings can be edited using XGworks or XGworks lite Music Sequencing Software, which includes the VH Effect Editor module.
From: Yamaha PLG100-VH Vocal Harmony Plug-in Board Owner's Manual
