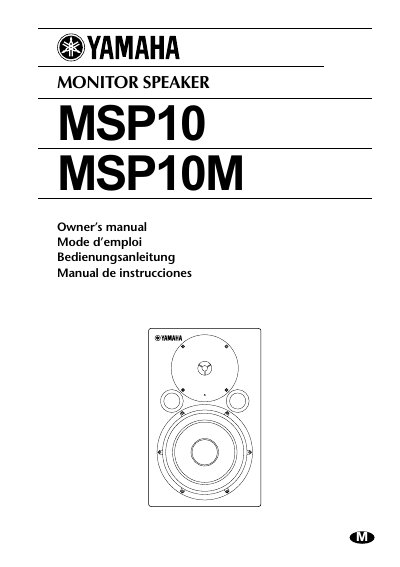

Yamaha MSP10/MSP10M Monitor Speaker Owner's Manual
The Yamaha MSP10/10M is a compact bass reflex cabinet featuring a two-way cone speaker system. It includes a 20 cm (8-inch) low-frequency driver and a 2.5 cm titanium dome high-frequency driver, designed for faithful sound reproduction in various applications from home recording to professional use.
The document provides detailed instructions on safety precautions regarding power connections and ventilation, explains the functions of front panel controls such as TRIM switches for bass and treble adjustment, LOW CUT filtering, and sensitivity control. It also includes specifications, a block diagram, and information on wall mounting using an optional bracket.
Yamaha MSP10 specifications
| Frequency Range | 40 Hz to 40 kHz (-10 dB) |
|---|---|
| Maximum Output Level | 110 dB (1 mon Axis) |
| Dimensions | 265 x 420 x 329 mm |
| Weight | 20 kg |
| Speaker Unit LF | 20 cm Cone (4Q, magnetic shielded) |
| Speaker Unit HF | 2.5 cm Titan Dome (8Q, magnetic shielded) |
| Input Sensitivity/Impedance | -6 dB to +4 dB/10 kΩ |
| Power Requirement (USA and Canada) | AC 120V, 60 Hz |
Source: Yamaha MSP10STUDIO Powered Monitor Speaker Owner's Manual
All Yamaha MSP10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum output level?
The maximum output level is 110 dB for one monitor on axis.
From: Yamaha MSP10STUDIO Powered Monitor Speaker Owner's Manual
What are the required ventilation clearances around the unit?
You must allow at least 10 cm of space on the sides, 30 cm behind, and 60 cm above the unit.
From: Yamaha MSP10STUDIO Powered Monitor Speaker Owner's Manual
What is the function of the LOW CUT switch?
The LOW CUT switch turns on or off the high-pass filter that cuts frequency ranges below 80 Hz.
What are the power requirements for USA and Canada?
The unit requires AC 120 V, 60 Hz for use in the USA and Canada.
