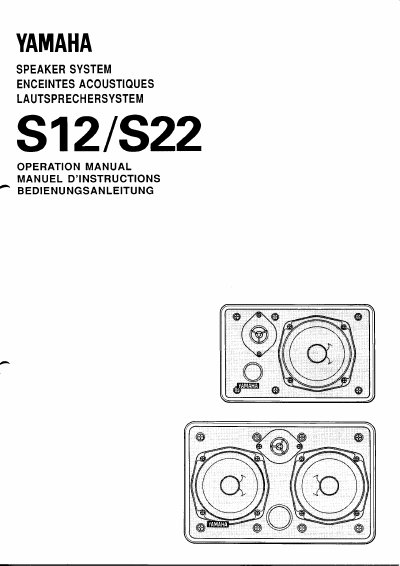

Yamaha S12/S22 Speaker System Operation Manual
The Yamaha S12/S22 is a compact two-way bass-reflex speaker system equipped with a 12 cm woofer and a 2.5 cm tweeter. The manual provides instructions on connecting the speakers to amplifiers using either standard 1/4" phone jacks or push-button type terminals, ensuring correct polarity for optimal sound quality.
Read onlineYamaha S22 specifications
| Type | 2-way bass-reflex speaker system |
|---|---|
| Magnetic shielding type | magnetic shielding type |
| Tweeter | 3 cm (1") dome tweeter |
| Woofer | 8 cm (3.1") cone woofer x2 |
| Impedance | 6Q |
| Nominal Input power | 40 W |
| Maximum input power | 120 W |
| Sensitivity | 86 dB/2.83 V/m |
| Crossover frequency | 3 kHz |
| Dimensions (with the stand) | 236 x 1050 x 236 mm |
All Yamaha S22 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What should I do if the speaker falls over?
If the speaker falls over, it may damage the speaker or cause injury to persons and/or damage to personal property.
How should I position speakers for a surround sound system?
Position the speakers both side of your TV, facing the listener at about ear level, and equidistant from the TV.
Can the speakers be mounted vertically or horizontally?
Yes, these speakers can be mounted in a variety of ways and can be mounted horizontally or vertically.
What type of connectors are provided on the S12/S22?
The speakers provide both standard 1/4" phone jack connectors and push-button type terminals.
