Key facts
- Brand
- Yamaha
- Model
- PM1800
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-13
Start here

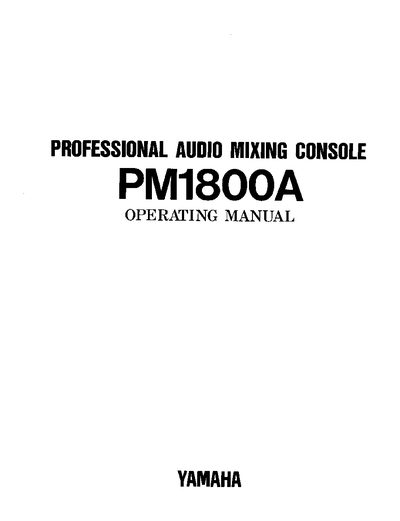

Yamaha PM1800A Professional Audio Mixing Console Operating Manual
This manual provides operating instructions for the Yamaha PM1800A professional audio mixing console. It includes brief operating instructions, detailed descriptions of front and rear panel features, and specifications for the console and its power supply unit (PW1800). The document explains terminology, conventions, and safety warnings regarding power connections and grounding.
Read onlineAll Yamaha PM1800 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the purpose of the Group Master Faders?
The Group Master Faders control the level on the eight Group Mixing Busses.
From: Yamaha PM1800A Professional Audio Mixing Console Operating Manual
What connectors are used in the PM1800A console?
The console uses XLB connectors which are compatible with and equivalent to XLRs.
From: Yamaha PM1800A Professional Audio Mixing Console Operating Manual
What is the PM1800?
The PM1800 is a professional audio mixing console.
From: Yamaha PM1800 Professional Audio Mixing Console Operating Manual
Who should use this manual?
It is intended for engineers or technicians familiar with sound system design, though it also provides background information for better utilization of the console and auxiliary equipment.
From: Yamaha PM1800 Professional Audio Mixing Console Operating Manual
