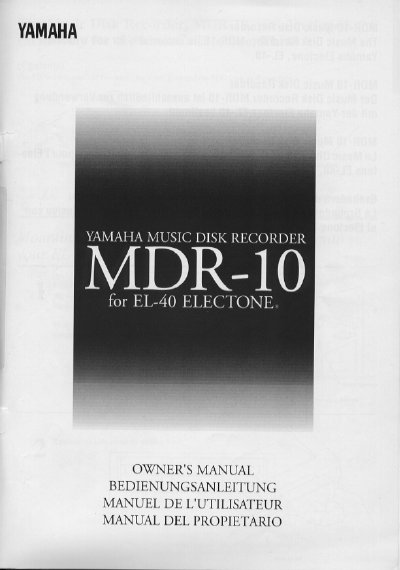

Yamaha MDR-10 Music Disk Recorder Owner's Manual
The Yamaha MDR-10 Music Disk Recorder is a sophisticated recording device designed exclusively for use with the Yamaha Electone EL-40. It records performance data, including notes, voices, rhythms, and pedal positions, to 3.5-inch microfloppy disks. The device consists of two parts: a Panel Unit and an FDD Unit that mount onto the Electone.
Read onlineYamaha MDR-1 specifications
| Compatible Disks | 3.5" floppy disk |
|---|---|
| Disk Capacity (2HD) | 1,248 Kb |
| Disk Capacity (2DD) | 626 Kb |
| Panel Unit Dimensions | 155x 115x 32mm |
All Yamaha MDR-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What disks are compatible with the MDR-10?
The MDR-10 accepts either double-sided double density (2DD) or double-sided high density (2HD) 3.5-inch microfloppy disks.
Can I record separately recorded parts of a song?
Yes, the MDR-10 allows you to separately record different parts of your performance to build up a song part by part.
How do I erase recorded data?
Press the ERASE button before erasing recorded data. Pressing it during playback engages the rewind mode.
How do I select a program?
Use the MUSIC SELECT button to select the program number before recording or playback.
