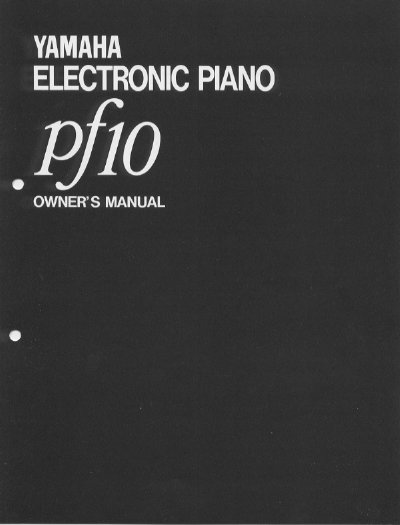

Yamaha PF10 Electronic Piano Owner's Manual
The Yamaha PF10 is a compact, lightweight electronic piano featuring a 76-key keyboard with a six-octave range and 10 voice selectors. It utilizes Yamaha's advanced FM sound source technology and includes a built-in dual speaker system to produce a rich stereo chorus effect. The instrument also features a touch-type system with electric organ type keys for easier playability.
The manual covers basic controls including pitch adjustment, volume, tone selection, and the stereo chorus effect. It details how to connect external speakers, headphones, and foot pedals (KEY HOLD and SUSTAIN), as well as how to use the LINE INPUT jack for external audio sources. The document also includes a block diagram and technical specifications.
Yamaha PF10 specifications
| Keyboard Range | 76 keys, 6 octaves (EO to G6) |
|---|---|
| Maximum Polyphony | 16 notes |
| Output Level | -10 dBm |
| Output Impedance | 600 ohms |
| Pitch Control Range | 436 to 447 Hz |
All Yamaha PF10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn off the PF10 properly?
First turn the VOLUME control all the way down to the left position, then turn the Power switch off.
What happens when headphones are connected?
The PF10's enclosed speakers will automatically shut off so that no sound comes out.
What is the MIDI Bank Select number for the Grand Piano voice?
The MIDI Bank Select number for the Grand Piano voice is 05.
Which voice type is assigned to the MIDI note number 122 in Bank 05?
The voice type assigned to MIDI note 122 in Bank 05 is Natural.
What is the MIDI Bank Select number for the GrandPiano1 voice?
The MIDI Bank Select number for the GrandPiano1 voice is 05.
Which voices are assigned to MIDI channel 05 in Bank 65?
Voices such as Soft Accrd and Modern Harp are assigned to MIDI channel 05 in Bank 65.
