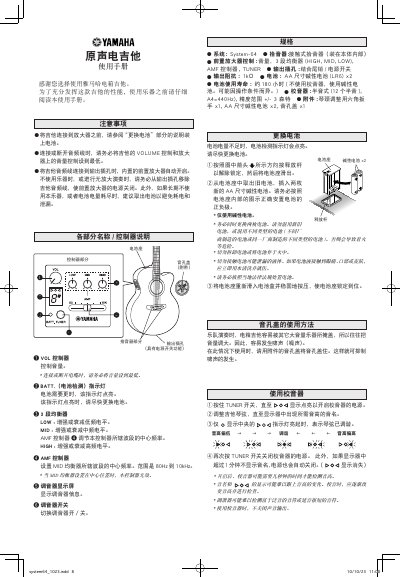

Yamaha System-64 Acoustic-Electric Guitar User Manual
This document is the user manual for the Yamaha System-64 acoustic-electric guitar. It covers essential safety precautions, such as setting volume controls to minimum before connecting cables and removing the audio cable when not in use to prevent the preamp from powering on. The manual also advises removing batteries if the instrument will not be used for a long period to prevent leakage and power drain.
The guide details the operation of the built-in tuner, which features a chromatic scale with a precision range of +/- 3 cents. It explains how to adjust the guitar strings until the correct note name appears on the display, with the central indicator lighting up when the string is in tune. Additionally, instructions are provided for replacing the two AA alkaline batteries required for the tuner and preamp, emphasizing the use of only alkaline batteries and replacing both simultaneously. This manual is written in Chinese.
Yamaha System-64 specifications
| System | System-64 |
|---|---|
| Pickup | Contact Pickup |
| Preamplifier Controls | Vol., 3-Band EQ, AMF control, TUNER |
| Output Impedance | 1kQ |
| Batteries | Size AA alkaline battery (LR6) x2 |
| Battery Life | Approx. 180 hours |
| Tuner Accuracy | +/- 3 cents |
Source: Yamaha System-64 Electric Acoustic Guitar Owner's Manual
All Yamaha System-64 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What batteries are required for the System-64 guitar?
The instrument requires two AA size alkaline batteries (LR6).
How long do the batteries last under standard conditions?
Battery life is approximately 180 hours when not using the tuner.
When should I replace the batteries?
Replace the batteries as soon as possible when the BATT. indicator lights.
From: Yamaha System-64 Electric Acoustic Guitar Owner's Manual
How do I turn the tuner on?
Press and hold the TUNER switch until the PO display lights.
