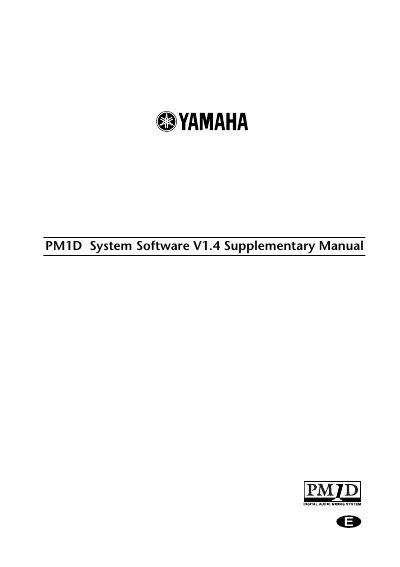

This is the summary of PM1D System Software V1.4 Supplementary Manual. It introduces the new functions of the software, including digital gain, BALANCE control, temporary monaural setting and M/S decoding
This supplementary manual explains the functionality added or changed in version 1.4 of the PM1D system software for the CS1D unit. Key updates include digital gain adjustments for input channels, a new BALANCE control mode, and monaural settings for paired inputs.
The document also covers operational procedures for these new features, such as adjusting digital gain via the screen or front panel, linking gain settings between adjacent channels using GAIN GANG, and utilizing M/S decoding. Additionally, it describes changes to the user interface, including updated encoder angles and color-coded indicators for PAN versus BALANCE modes.
| Digital gain range (Input Channel/Insert Input) | +10 dB to -20 dB |
|---|---|
| Internal input sensitivity adjustment range | -10 dB to +20 dB |
Yes, digital gain has been added to the six 2TR IN inputs, allowing sensitivity adjustment independently for L and R in the digital domain.
When enabled, the odd-numbered channel sends only to L and the even-numbered channel sends only to R; the BAL knob adjusts their volume in tandem.
