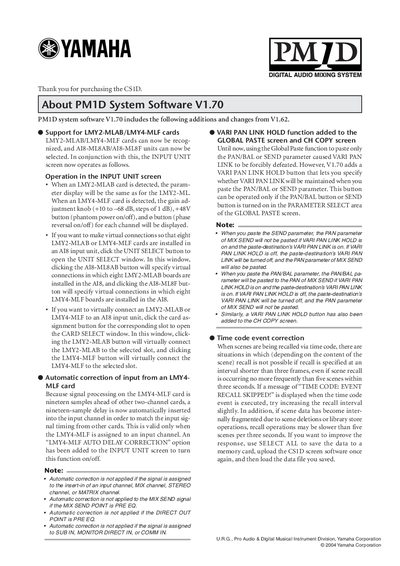

This document introduces the CS1D product from Yamaha Corporation, as well as the additions and changes in PM1D system software V1.70. This includes support for LMY2-MLAB/LMY4-MLF cards and the selection of AI8-ML8AB/AI8-ML8F units.
This document outlines the updates included in the Yamaha PM1D System Software V1.70 release. Key additions include support for LMY2-MLAB and LMY4-MLF cards, allowing them to be recognized and configured within the AI8 input unit. The software also introduces an automatic correction feature for input signals from LMY4-MLF cards to match timing with other two-channel cards.
The gain adjustment knob ranges from +10 to -68 dB in steps of 1 dB, and buttons for +48V phantom power and phase reversal are displayed.
A nineteen-sample delay is inserted into the input channel to match signal timing from other cards.
Automatic correction is disabled if the signal is assigned to an insert-in, MIX channel, STEREO channel, MATRIX channel, SUB IN, MONITOR DIRECT IN, or COMM IN.
