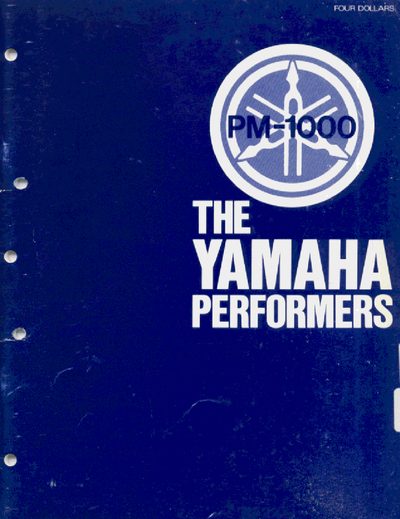

Yamaha PM-1000 Mixing Console User Manual
The Yamaha PM-1000 is a 4-bus mixing console available with 16, 24, or 32 input channels. Designed for professional sound reinforcement and studio applications, it features modular construction, all-solid-state circuitry, and durable black-anodized aluminum panels housed in a rosewood cabinet.
The document provides detailed instructions on identifying parts and controls, including the Input Module, Master & Monitor Module, Headphone & Echo Module, and Talkback & Oscillator Module. It also covers installation procedures such as grounding theory and cable wiring configurations, along with block diagrams and maintenance guidelines.
Yamaha PM-1000 specifications
| Number of Buses | 4-bus mixing console |
|---|---|
| Input Channels | 16, 24 or 32 input channels |
| Input Sensitivity Range | -60dB to +4dB |
| High Pass Filter Frequencies | 40Hz or 80Hz |
| Equalization Range | +15dB peaking or shelving |
All Yamaha PM-1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do you check inputs for correct phase?
Begin with all channels in the N mode, assign mics to the cue bus, match levels, and reverse the phase of one mic by moving its switch to R. If the bass increases, leave it in R mode.
What is the purpose of the 80Hz filter setting?
It reduces vocal P-pops and 60Hz hum from electric instruments without noticeably changing the sound.
What are the input channel options for the PM-1000?
The console is available with 16, 24, or 32 input channels.
How does the Phase Switch function?
Sliding the switch from N (normal) to R (reverse) interchanges the leads joining pins 2 and 3 of the XLR connector to reverse the polarity of the audio signal.
