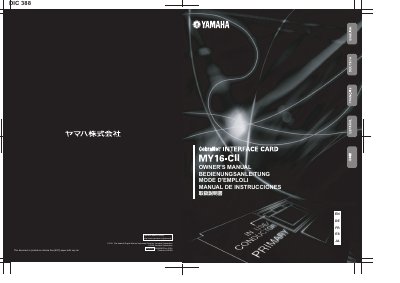

Yamaha MY16-CII CobraNet Interface Card Owner's Manual
The Yamaha MY16-CII is an expansion card designed for use with compatible Yamaha professional audio devices. It allows for the transmission and reception of up to 32 channels (16 input/16 output) of uncompressed digital audio data via a CobraNet network.
The document covers package contents, system overview, controls and functions, connection examples, and software installation procedures including the CobraNet Manager.
Yamaha MY16-C specifications
| Channels (I/O) | 32 channels (16 in/16 out) |
|---|---|
| Network Type | Fast Ethernet |
| Audio Bit Depth | 16, 20, or 24-bit |
| Sampling Rates | 48 or 96 kHz |
Source: Yamaha MY16-CII CobraNet Interface Card Owner's Manual
All Yamaha MY16-C documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is CobraNet?
CobraNet is an audio networking system developed by Cirrus Logic, Inc. that allows real-time transmission and reception of multiple channels of uncompressed digital audio signals via a Fast Ethernet network.
From: Yamaha MY16-CII CobraNet Interface Card Owner's Manual
How many bundles can the MY16-CII handle?
The MY16-CII can use up to 4 output bundles and up to 8 input bundles.
From: Yamaha MY16-CII CobraNet Interface Card Owner's Manual
What type of Ethernet cable should be used for a direct connection between two devices?
Cross cables should be used for direct connection between two devices.
From: YAMAHA Errata DME8i-C/DME8o-C/DME4io-C owner's manual P.17 MY16-CII owner's manual P.8
What is required to connect three or more devices in a CobraNet network?
Hubs and straight cables are required to connect 3 or more devices.
From: YAMAHA Errata DME8i-C/DME8o-C/DME4io-C owner's manual P.17 MY16-CII owner's manual P.8
What is CobraNet?
CobraNet is an audio networking system developed by Peak Audio that allows real-time transmission and reception of uncompressed digital audio signals via a Fast Ethernet network cable.
What are the bundle numbers for the MY16-C?
The MY16-C can be set to handle 2 transmit bundle numbers and 2 receive bundle numbers, which can be specified via rotary switches on the card or through device software.
