Key facts
- Brand
- Yamaha
- Model
- TD-1
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-06-12
Start here

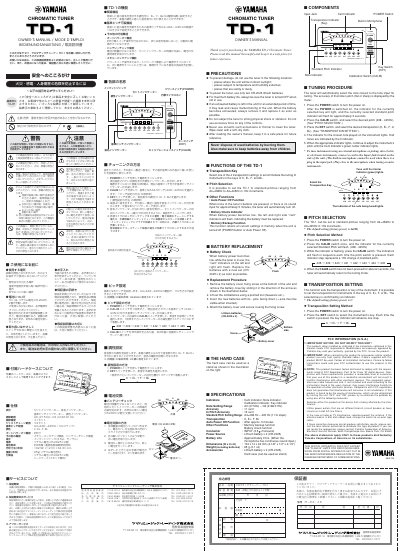

Yamaha TD-1 Chromatic Tuner Owner's Manual
This document is the Owner's Manual for the Yamaha TD-1 Chromatic Tuner. It provides instructions on how to use the device to tune musical instruments, including setting the standard pitch and transposition key. The manual also details the functions of the tuner, such as the auto power-off and battery check indicators.
Read onlineYamaha TD-1 specifications
| Tuning range | 1 (32.70Hz)-C8 (4186.01Hz): Sine wave |
|---|---|
| Reference tone | A4 (261.63Hz)—C5 (523.25Hz} |
| Tuning modes | METER (AUTO), SOUND (MANUAL) |
| Calibration function range | 410-480 Hz (1 Hz steps} |
| Detection accuracy | +1 cent |
| Sound accuracy | £1.5 cent |
| Connection jack | INPUT jack (1/4" mono) |
| Power supply | two AAA batteries 3V |
| Battery life | Approximately 100 hours |
| Dimensions | 4.1" x 2.52" x 0.6" (104 x 64 x 15 mm} |
| Weight | 2.86 oz (81g) |
All Yamaha TD-1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What batteries are required for the Yamaha TD-12?
The tuner requires two AAA (R03, LRO3, L30) SV dry cell batteries.
How long do the batteries last?
Battery life is approximately 100 hours when using conventional batteries in Meter mode with continuous A4 input.
What type of batteries are required for the Yamaha TD-10M?
The tuner requires two AAA 1.5-volt batteries.
How long does the battery last?
The battery life is approximately 100 hours under standard conditions.
How do I set the standard pitch?
Press the CALIB switch to select the desired pitch between 438Hz and 445Hz.
