Key facts
- Brand
- Yamaha
- Model
- DSP5D
- Industry
- Industrial
- Documents
- 5
- Languages
- EN
- Last added
- 2012-07-02
Start here

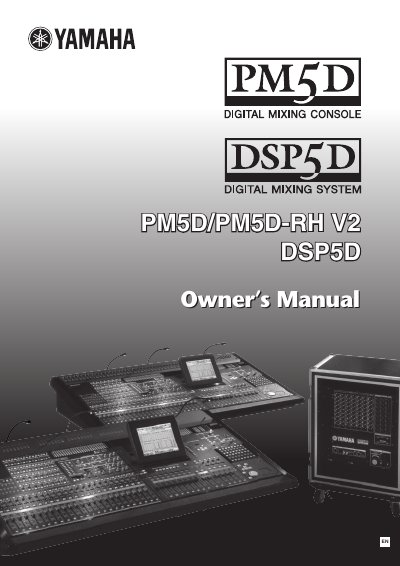

YAMAHA PM5D/PM5D-RH V2 DSP5D owner's manual(1)
This document serves as the Owner's Manual for the Yamaha PMS5D and PMS5D-RH V2 Digital Mixing Systems. It provides essential information for users, including FCC compliance notices, safety warnings regarding high-intensity lamps and lithium batteries, and instructions for proper installation and maintenance.
Read onlineYamaha DSP5D specifications
| Operating System | Windows 7 Ultimate/Professional/Home Premium, Windows Vista, Windows XP Professional SP2 or later, Mac OSX 10.5.8/10.6.x |
|---|---|
| Hard Disk Space | 100MB or more |
| Display Resolution | 1024 x 768 pixels or higher |
| CPU (Windows Vista /7) | 32bit : 1.4GHz or higher Intel Core/Pentium/Celeron family processor |
| Memory (Windows Vista /7) | 1GB or more (2GB or more on Windows 7 64-bit) |
| CPU (Windows XP) | 800MHZ or higher Intel Core/Pentium/Celeron family processor |
| Memory (Windows XP) | 512MB or more |
| Memory (Mac OS X) | 1GB or more |
All Yamaha DSP5D documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What software programs are needed to use DSP5D Editor?
You need to install the Studio Manager, the DSP5D Editor, and the DME-N Network Driver (for Windows) or Network-MIDI Driver (for Mac).
What is the function of the Studio Manager?
It is a cross-platform application that enables you to use multiple Editor programs for remotely controlling Yamaha hardware and allows you to save Editor settings for instant recall.
What is the product described in this manual?
This document covers a digital mixing console and system.
How should the power cord be handled to prevent damage?
Protect the power cord from being walked on or pinched, especially at plugs and where it exits the apparatus.
Does this product comply with EU RoHS regulations?
Yes, the product conforms to the RoHS regulations in the EU.
From: Yamaha PM5D/PM5D-RH V2/DSP5D Digital Mixing System User Manual
What specific safety precaution must be taken regarding the power cord?
You must protect the power cord from being walked on or pinched, especially at plugs and where it exits the apparatus.
