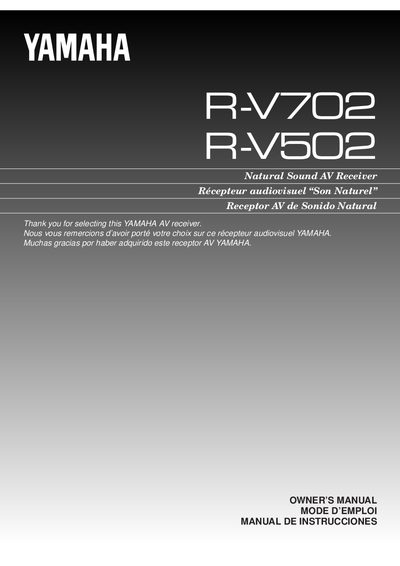

Yamaha R-V702/R-V502 AV Receiver Owner's Manual
This document is the Owner's Manual for the Yamaha R-V702 and R-V502 Natural Sound AV Receivers. It covers safety instructions, a profile of the unit, speaker setup procedures, connection details, and descriptions of controls and their functions.
The guide also explains basic operations including tuning, preset station management, and the use of the Digital Sound Field Processor (DSP). Additional sections cover setting the sleep timer, troubleshooting common issues, and detailed specifications for various models.
Yamaha V502 specifications
| RMS Output Power (Main/Center/Rear) - USA Models | 80W + 80W / 80W / 20W + 20W |
|---|---|
| RMS Output Power - Australia/Canada Models | 70W + 70W / 70W / 20W + 20W |
| RMS Output Power - General Models | 60W + 60W / 60W / 20W + 20W |
| Included Accessories | Indoor FM Antenna, Batteries (AA), Remote Control Transmitter |
All Yamaha V502 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the RMS output power for the USA models?
The USA models provide 80W + 80W (Main), 80W (Center), and 20W + 20W (Rear) RMS Output Power.
What is the RMS output power for Australia and Canada models?
The Australia and Canada models provide 70W + 70W (Main), 70W (Center), and 20W + 20W (Rear) RMS Output Power.
What accessories are supplied with the receiver?
The supplied accessories include an Indoor FM Antenna, Batteries (size AA, R6, UM-3), and a Remote Control Transmitter.
From: Yamaha R-V7020/V502 Natural Sound AV Receiver Owner's Manual
How many speaker configurations are supported?
The receiver supports a 5 Speaker Configuration.
From: Yamaha R-V7020/V502 Natural Sound AV Receiver Owner's Manual
