Start here

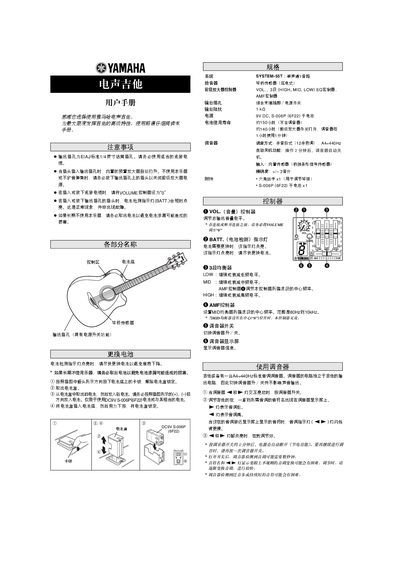

Yamaha SYSTEM-55T Electric Guitar User Manual
The document is a user manual for the Yamaha SYSTEM-55T single-channel electric guitar. It details the functions of various controls including volume, 3-band equalizer (LOW, MID, HIGH), and an AMF controller. The instrument features a built-in piezo pickup system and a standard A4=440Hz chromatic tuner. This manual is written in Chinese.
Read onlineYamaha System-55T specifications
| System Type | Single-channel 1-path |
|---|---|
| Pickup System | Bridge sensor (Piezo) |
| Output Impedance | 1 kΩ |
| Power Source | 9V DC, S-006P (6F22) dry battery |
| Battery Life | Approx. 150 hours (without tuner) |
| Tuner Accuracy | +/- 3 cents |
All Yamaha System-55T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What type of battery is required for the guitar?
The guitar requires a DC9V S-006P (6F22) dry battery or an equivalent.
How long does the battery last?
Battery life is approximately 150 hours without using the tuner, or about 140 hours with the preamp on and the tuner used for one minute per hour.
What type of battery is required for the Yamaha System-55T?
The instrument requires a DC9V, S-O06P (6F22) or equivalent dry cell battery.
From: Yamaha System-55T Electric Acoustic Guitar Owner's Manual
How long does the battery last?
Battery life is approximately 150 hours without the tuner, or approximately 140 hours with the preamp switched on and the tuner used 1 minute every hour.
From: Yamaha System-55T Electric Acoustic Guitar Owner's Manual
How do I replace the battery?
Press the lock on the battery compartment as shown, remove the old 9 V DC S‑006P battery, and insert a new one with the correct (+) and (‑) polarity.
What should I do before connecting or disconnecting the cable?
Set the VOLUME control to "0" before inserting or removing the cable.
