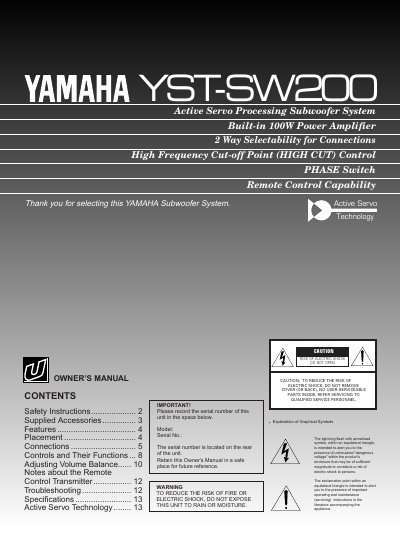

Yamaha YST-SW200 Subwoofer System Owner's Manual
The Yamaha YST-SW200 is an active subwoofer system featuring built-in power amplification and Active Servo Technology to reproduce high-quality super-bass sound. It allows users to connect via speaker terminals or line outputs, offering flexibility for various audio setups.
To achieve optimal performance, the manual details proper placement strategies, such as positioning the unit obliquely to walls to prevent bass cancellation from standing waves. Users can adjust the frequency response using a High Frequency Cut-off control and select phase alignment with a switch.
Yamaha YST-SW20 specifications
| Type | Active Servo Processing Subwoofer System |
|---|---|
| High-Cut Filter | Low, High |
| Pressure Level | 100 dB (max.) |
| Frequency response | 30 to 250 Hz (-10dB) |
| Speaker unit | 6.3" (16 cm) cone woofer, magnetic shielding |
| Power supply | AC 120 V, 60 Hz |
| Dimensions (W x H x D) | 280 (11) x 200 (7.9") x 289 (11.4") mm |
All Yamaha YST-SW20 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What accessories are included with the subwoofer?
The package includes a Remote Control Transmitter, Batteries (size AA), and Speaker Cords.
How should the subwoofer be placed relative to walls?
It is recommended to face the unit obliquely to the wall to prevent bass sounds from being canceled by reflections.
What are the options for the High-Cut Filter?
The High-Cut Filter can be set to either LOW or HIGH.
What is the frequency response of the speaker unit?
The frequency response ranges from 30 to 250 Hz (-10dB).
