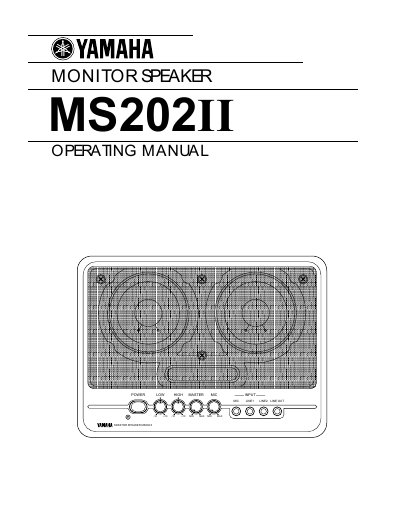

YAMAHA MS202II OWNER'S MANUAL
This manual provides operating instructions for the Yamaha MS202IT monitor speaker, a compact bass-reflex style cabinet featuring a 4-inch full-range speaker. It is designed for home recording and personal practice applications. The device utilizes a magnetic field-cancelling speaker to prevent interference with nearby television or video monitors. The manual details the front and rear panel controls, including power, volume, and input jacks for microphones and line-level instruments.
Read onlineYamaha MS202 specifications
| Type | Bass Reflex Powered Speaker |
|---|---|
| Frequency Range | 70 Hz - 18 kHz (Tone Con. : Flat) |
| Max. SPL | 103 dB SPL (20W, 1m on axis) |
| Dimensions | 292 x 214 x 198 mm (11-1/2 x 8-3/8 x 7-3/4 in) |
| Weight | 3.9 kg (8 Ib 6 02) |
| Components | JA1060 [10cm (4in), Cone] x 2 |
| Output Power | 20 W at 1 kHz, THD=0.5%, RL=4Ω |
| Input Sensitivity (MIC) | -50 dB / 10 kΩ/ Phone Jack |
All Yamaha MS202 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can the MS202 be placed next to a television?
Yes, because it uses magnetic field-canceling speakers that do not interfere with the picture.
What is the power requirement for US and Canadian models?
The unit requires AC120 V at 60 Hz.
Can the MS202IT be placed next to a television?
Yes, it can be placed next to a television or video monitor without causing interference.
What is the recommended gap between the speaker and the wall?
A gap of 10 cm or more should be maintained between the rear of the unit and the wall.
