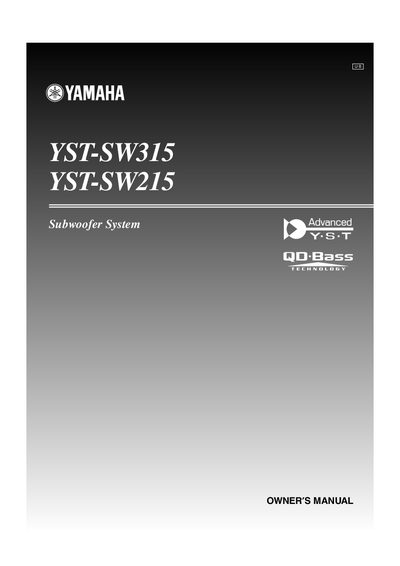

Yamaha YST-SW315/SW215 Subwoofer System Owner's Manual
Thank you for selecting this YAMAHA subwoofer system. This document serves as the Owner's Manual for the YST-SW315/SW215 models, containing essential information to ensure safe and optimal performance.
The manual outlines important safety instructions regarding electrical shock, fire hazards, and proper ventilation. It details installation requirements, such as maintaining at least 20 cm of space around the unit, and lists specific items that should not be placed on top of the device due to vibration risks.
Yamaha SW-2 specifications
| Type | Active Servo Processing Subwoofer System |
|---|---|
| High-Cut Filter | Low, High |
| Pressure Level | 100 dB (max.) |
| Frequency response | 30 to 250 Hz (-10dB) |
| Speaker unit | 6.3" (16 cm) cone woofer, magnetic shielding |
| Power supply | AC 120 V, 60 Hz |
| Dimensions (W x H x D) | 280 (11) x 200 (7.9") x 289 (11.4") mm |
All Yamaha SW-2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- Yamaha YST-SW225 Subwoofer System Owner's Manual 20 p
- Yamaha YST-SW200 Subwoofer System Owner's Manual 14 p
- Yamaha YST-SW20 Subwoofer System Owner's Manual 6 p
- Yamaha SW-2 Active Servo Processing Subwoofer System Owner's Manual 13 p
- Yamaha S112V/S115V/S215V/SM10V/SM12V/SM15V/SW115V/SW118V/SW218V Speaker System Owner's Manual 11 p
- Yamaha YST-SW216 Subwoofer System Owner's Manual 20 p
- Yamaha SW-201 Subwoofer System Owner's Manual 15 p
- Yamaha YST-SW315/SW215 Subwoofer System Owner's Manual 24 p
- Yamaha NS-SW210 Subwoofer Owner's Manual 12 p
- Yamaha YST‑SW216 Subwoofer Owner’s Manual 20 p
Questions answered in these manuals
What objects should never be placed on top of the subwoofer?
Do not place glass, china, small metallic items, burning candles, or vessels with water in them on the unit.
How much space must be left around the subwoofer for ventilation?
You must allow spaces of at least 20 cm above, behind and on both sides of the unit.
What accessories are included with the subwoofer?
The package includes a Remote Control Transmitter, Batteries (size AA), and Speaker Cords.
How should the subwoofer be placed relative to walls?
It is recommended to face the unit obliquely to the wall to prevent bass sounds from being canceled by reflections.
What are the options for the High-Cut Filter?
The High-Cut Filter can be set to either LOW or HIGH.
What is the frequency response of the speaker unit?
The frequency response ranges from 30 to 250 Hz (-10dB).
