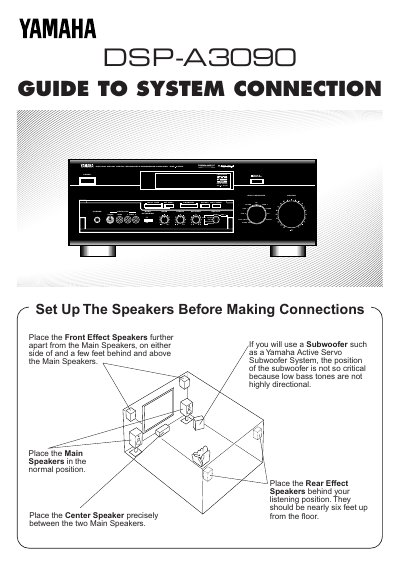

Yamaha DSP-A3090 Guide to System Connection
The document provides instructions on optimal speaker positioning for a multi-channel setup, including main speakers, center speakers, rear effect speakers, front effect speakers, and subwoofers. It details how to connect bare wire or banana plugs to speaker terminals with correct polarity.
The guide covers connecting various audio components like VCRs, CD players, and tuners using analog RCA cables and digital optical fiber connections. It also explains video component connections via S-Video or composite jacks and describes the function of rear panel switches for main level adjustment and system configuration.
All Yamaha DSP-A3090 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How should front effect speakers be positioned?
Place them further apart from the main speakers, on either side of and a few feet behind and above the main speakers.
How do I connect a subwoofer to this unit?
If using a Yamaha Active Servo Subwoofer System, the position is not critical because low bass tones are not highly directional.
How should the Front Effect Speakers be positioned?
Place them further apart from the Main Speakers, on either side of and a few feet behind and above the Main Speakers.
How do I configure the unit for a 5-channel system?
Set the FRONT MIX switch to "ON (5ch)".
