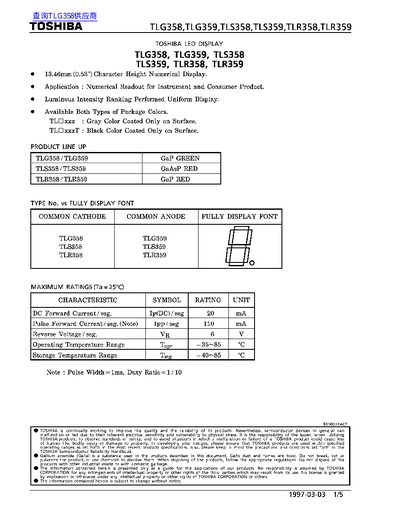

The Toshiba TLG359 LED display segment is part of a product line that includes green GaP (TLG series) and red GaAsP (TLS and TLR series) devices. The document provides detailed electrical‑optical characteristics, maximum ratings, and mechanical dimensions for each segment type.
Key information includes forward current limits, reverse voltage, operating temperature ranges, luminous intensity, and pin assignments. Safety precautions such as soldering temperature limits are also listed.
| Character Height | 13.46 mm (0.53 in) |
|---|---|
| DC Forward Current per segment | 20 mA |
| Pulse Forward Current per segment | 110 mA |
| Reverse Voltage per segment | 6 V |
| Operating Temperature Range | -35 °C to 85 °C |
| Storage Temperature Range | -40 °C to 85 °C |
| Soldering Temperature Limit | < 260 °C for 3 s at 2.0 mm |
The maximum DC forward current per segment is 20 mA.
Soldering temperature should be kept below 260 °C for 3 seconds, with the tip at least 2.0 mm from the seating plane.
