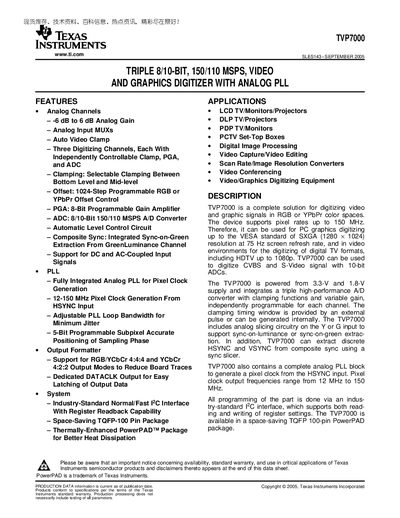

This document is a TI TVP7000 datasheet. It is a video and graphics digitizer that supports RGB and YPbPr color spaces and supports the acquisition of images with pixel rates up to 150MHz.
The TVP7000 is a triple 8/10‑bit video and graphics digitizer that supports pixel clocks from 12 MHz to 150 MHz, integrated analog PLL, programmable gain amplifiers, and three independent video channels for RGB or YPbPr signals.
The datasheet includes functional block diagrams, detailed terminal assignments, absolute maximum ratings, recommended operating conditions, electrical and mechanical characteristics, and timing requirements to aid designers in integrating the part into video capture, editing, and display systems.
| Pixel Clock Range | 12‑150 MHz |
|---|---|
| ADC Resolution / Sample Rate | 8/10‑bit, 150/110 MSPS |
| Digital Supply Voltages | IOVDD 3.3 V, DVDD 1.8 V |
| Analog Input Voltage Range | 0.5 V – 2.0 Vpp |
It is supplied in a 100‑pin TQFP PowerPAD plastic quad flat‑pack.
The device can generate pixel clocks up to 150 MHz.
