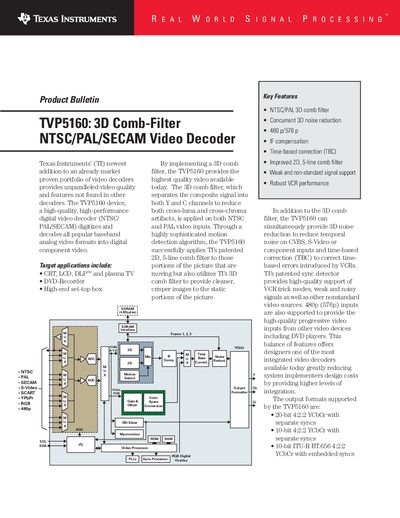

The product TVP5160 is a high-quality, high-performance digital video decoder that supports NTSC, PAL, SECAM and other video formats. It also has 3D comb filter, 3D noise reduction, 480p/576p, IF compensation, time-base correction (TBC) and other functions.
The TVP5160 is a high‑performance digital video decoder that converts NTSC, PAL, and SECAM analog signals to digital component video. It incorporates a 3‑D comb filter and 3‑D noise reduction to deliver high‑quality images for CRT, LCD, DLP, and plasma TVs, DVD recorders, and set‑top boxes.
Technical details include 11‑bit, 60‑MSPS A/D converters, 12 configurable video input terminals, multiple output formats (20‑bit and 10‑bit YCbCr), and low‑power operation with 1.8 V core and 3.3 V I/O. The device also supports VBI data retrieval, Macrovision detection, and fast switching for RGB overlay.
| ADC resolution | 11‑bit, 60‑MSPS |
|---|---|
| Number of video input terminals | 12 |
| Output video format | 20‑bit 4:2:2 YCbCr with separate syncs |
The device provides a total of 12 video input terminals that can be configured for various input types.
It offers 20‑bit 4:2:2 YCbCr with separate syncs, 10‑bit 4:2:2 YCbCr with separate syncs, and 10‑bit ITU‑R BT.656 4:2:2 YCbCr with embedded syncs.
