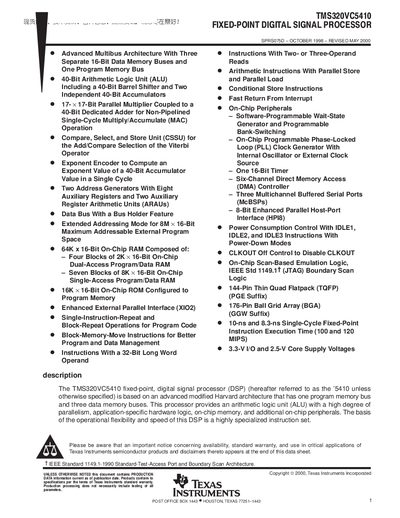

The TMS320VC5410 is a fixed‑point digital signal processor from Texas Instruments featuring a 40‑bit arithmetic logic unit, a 40‑bit barrel shifter, separate 16‑bit data memory buses, and parallel execution capabilities for high‑speed signal processing.
The datasheet includes pin‑assignment tables for the 144‑pin PGE and 176‑pin GGW packages, detailed terminal function descriptions, mechanical dimensions of the BGA package, and the standard warranty and notice information.
| ALU width | 40‑bit |
|---|---|
| Barrel shifter width | 40‑bit |
| I/O supply voltage | 3.3 V |
| Core supply voltage | 2.5 V |
| On‑chip ROM size | 16 K × 16‑bit |
| On‑chip RAM (large blocks) | 7 × 8 K × 16‑bit |
| Data memory bus width | 16‑bit (separate) |
| DMA channels | Six‑channel |
The device uses 3.3 V for I/O pins and 2.5 V for the core supply.
The PGE package of the TMS320VC5410 has 144 pins.
