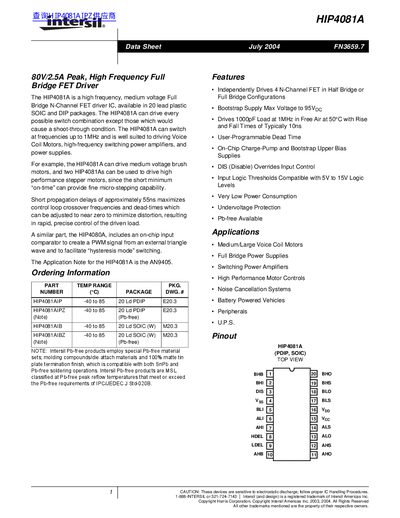

Intersil HIP4081A 80V/2.5A Peak Full Bridge FET Driver Datasheet
The HIP4081A is a high frequency, medium voltage Full Bridge N-Channel FET driver IC available in 20 lead plastic SOIC and DIP packages. It can drive every possible switch combination except those which would cause a shoot-through condition and is well suited to driving Voice Coil Motors, high-frequency switching power amplifiers, and power supplies.
The device features independently driven N-Channel FETs in half or full bridge configurations, a bootstrap supply with a maximum voltage to 95Vpc, and user-programmable dead time. It includes on-chip charge-pump and bootstrap upper bias supplies, with input logic thresholds compatible with 5V to 15V logic levels.
Intersil HIP4081A specifications
| Operating Temperature Range | -40°C to 85°C |
|---|---|
| Switching Frequency | Up to 1MHz |
| Bootstrap Supply Max Voltage | 95Vpc |
| Undervoltage Protection Rising Threshold | 8.1V |
| Quiescent Current (Typical) | 10.5mA |
Source: Intersil HIP4081A 80V/2.5A Peak Full Bridge FET Driver Datasheet
All Intersil HIP4081A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum switching frequency of the HIP4081A?
The HIP4081A can switch at frequencies up to 1MHz.
From: Intersil HIP4081A 80V/2.5A Peak Full Bridge FET Driver Datasheet
What are the available package types for the HIP4081A?
The HIP4081A is available in 20 lead plastic SOIC and DIP packages.
From: Intersil HIP4081A 80V/2.5A Peak Full Bridge FET Driver Datasheet
What is the maximum supply voltage for the HIP4081A?
The device is rated for up to 80 V supply voltage.
What is the highest switching frequency the HIP4081A can achieve?
It can switch at frequencies up to 1 MHz.
