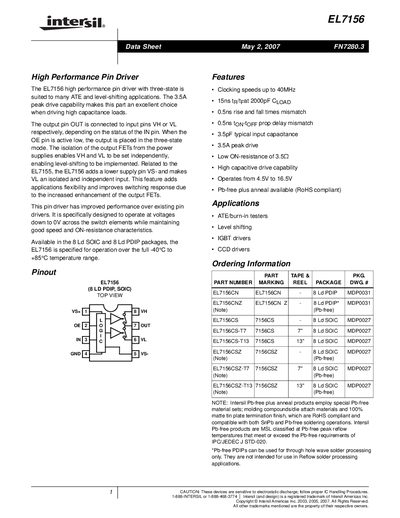

Intersil EL7156 Pin Driver Datasheet
The EL7156 high‑performance pin driver provides three‑state operation and level‑shifting capability for ATE, burn‑in testers, IGBT and CCD drivers. It delivers up to 3.5 A peak current and can drive high‑capacitance loads while operating over a temperature range of –40 °C to +85 °C.
Available in 8‑lead PDIP and SOIC packages, the device operates from 4.5 V to 16.5 V, supports both 3 V and 5 V CMOS inputs, and includes recommended power‑supply bypassing to ensure reliable high‑speed switching.
Intersil EL7156 specifications
| Peak Output Current | 3.5 A |
|---|---|
| Input Capacitance | 3.5 pF |
| Operating Voltage Range | 4.5 V to 16.5 V |
| Temperature Range | -40 °C to +85 °C |
| Clocking Speed | up to 40 MHz |
| Low ON‑Resistance | 3.5 Ω (typical) |
