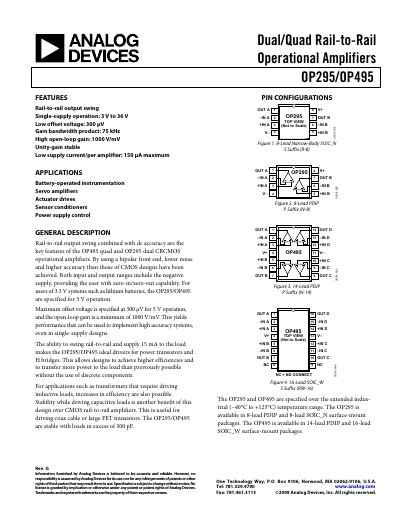

Analog Devices OP295/OP495 Operational Amplifier Handbook
This handbook provides an overview of the OP295 dual and OP495 quad rail‑to‑rail operational amplifiers, highlighting their single‑supply operation from 3 V to 36 V, low offset voltage, and high open‑loop gain. It includes pin configurations for various SOIC and PDIP packages and outlines typical performance characteristics such as slew rate and noise.
The document also presents application examples, including low‑drop‑out references, low‑noise preamplifiers, heavy‑load drivers, and direct‑access arrangements. Absolute maximum ratings, thermal resistance data, and ESD cautions are listed to aid designers in reliable implementation.
Analog Devices OP495 specifications
| Supply voltage range | 3 V to 36 V |
|---|---|
| Offset voltage (typical) | 300 µV |
| Gain‑bandwidth product | 75 kHz |
Source: Analog Devices OP295/OP495 Operational Amplifier Handbook
All Analog Devices OP495 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range can the OP295/OP495 operate from?
They support single‑supply operation from 3 V up to 36 V.
From: Analog Devices OP295/OP495 Operational Amplifier Handbook
What is the typical offset voltage of these amplifiers?
The typical offset voltage is 300 µV at 5 V operation.
From: Analog Devices OP295/OP495 Operational Amplifier Handbook
What supply voltage range do the OP295 and OP495 support?
They operate from 3 V up to 36 V on a single supply.
From: Analog Devices OP295/OP495 Dual/Quad Rail-to-Rail Operational Amplifier Datasheet
What is the maximum output current per amplifier?
Each amplifier can source up to 18 mA.
From: Analog Devices OP295/OP495 Dual/Quad Rail-to-Rail Operational Amplifier Datasheet
