ADG706/ADG707 is a low voltage, CMOS 8/16 channel multiplexer, single power supply for +1.8 V to +5.5 V, dual supply for -2.5 V, switch on resistance for 2.5 Ω, switch on resistance flatness for 0.5 Ω, leakage current for 100 pA, switching time for 40 ns, single 16 to 1 multiplexer ADG706 differential 8 to 1 multiplexer ADG707 28 lead TSSOP package low power consumption TTL/CMOS compatible inputs suitable for data acquisition systems, communication systems, relay replacement, audio and video switching, battery powered systems, etc.
The ADG706 and ADG707 are low‑voltage CMOS analog multiplexers offering 16‑to‑1 (single‑ended) and 8‑to‑1 (differential) channel configurations. They operate from a single supply of +1.8 V to +5.5 V or a dual supply of +2.5 V, feature low ON resistance, low leakage, and break‑before‑make switching, making them suitable for battery‑powered and portable instruments.

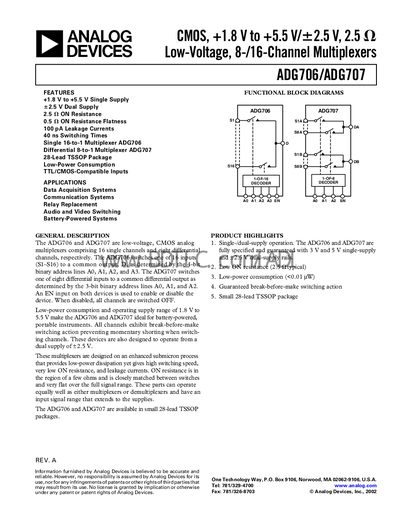

Both devices are supplied in a 28‑lead TSSOP package and are specified for an operating temperature range of –40 °C to +85 °C. The datasheet provides extensive electrical characteristics, absolute maximum ratings, pin configurations, ordering information, and typical performance graphs for designers.
| Supply Voltage (single‑supply) | +1.8 V to +5.5 V |
|---|---|
| Leakage Current (source OFF, typ) | +0.01 nA |
| Switching Time | 40 ns |
| Bandwidth (ADG706) | 25 MHz typ |
| Bandwidth (ADG707) | 36 MHz typ |
| Package | 28‑Lead TSSOP (RU‑28) |
| Operating Temperature Range | -40 °C to +85 °C |
They operate from a single supply of +1.8 V to +5.5 V or from a dual supply of +2.5 V.
The ADG706 provides a 16‑to‑1 single‑ended multiplexer, while the ADG707 provides an 8‑to‑1 differential multiplexer.
The switching time is specified as 40 ns.
