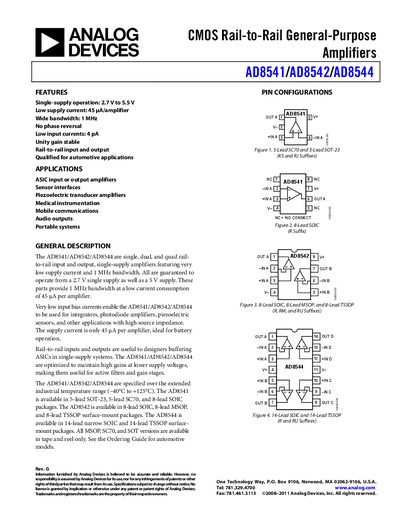

Analog Devices AD8541/AD8542/AD8544 Datasheet Rev G
The AD8541, AD8542 and AD8544 are single‑, dual‑ and quad‑channel rail‑to‑rail input and output CMOS amplifiers. They operate from a single supply of 2.7 V to 5.5 V, draw low supply current (45 µA per amplifier), and provide 1 MHz bandwidth.
These parts are specified over an extended industrial temperature range (‑40 °C to +125 °C) and are qualified for automotive applications. Package options include 5‑lead SC70, 5‑lead SOT‑23, 8‑lead SOIC/MSOP/TSSOP and 14‑lead SOIC/TSSOP, all available in tape‑and‑reel form.
Analog Devices AD8541 specifications
| Supply Voltage (Vs) – Absolute Maximum | 6 V |
|---|---|
| Input Offset Voltage (Vos) – Typical | 6 mV |
| Input Bias Current (Ie) – Typical | 60 pA |
| Power Supply Rejection Ratio (PSRR) – Typical | 65 dB |
| Slew Rate (SR) | 0.75 V/µs |
| Gain‑Bandwidth Product (GBP) | 980 kHz |
| Output Voltage High (Voh) – Typical | 2.575 V at 1 mA |
| Output Voltage Low (Vol) – Typical | 100 mV at 1 mA |
All Analog Devices AD8541 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the AD8541/AD8542/AD8544 operate from?
They operate from a single supply of 2.7 V to 5.5 V.
What is the typical input bias current of these amplifiers?
The typical input bias current is 60 pA.
What is the typical supply current per amplifier?
The amplifiers draw only 45 µA per amplifier, which is ideal for battery‑operated designs.
Which package options are available for the AD8541?
The AD8541 is offered in 5‑lead SOT‑23, 5‑lead SC70, and 8‑lead SOIC packages.
