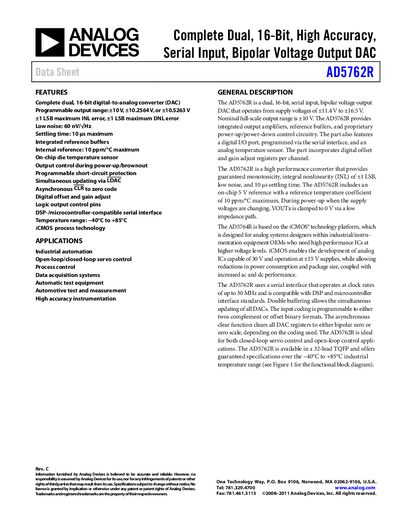

AD5762R is a complete dual, 16-bit, high accuracy, serial input, bipolar voltage output DAC datasheet
The AD5762R is a dual, 16‑bit, serial‑input, bipolar voltage output DAC designed for industrial automation, test equipment, and high‑accuracy instrumentation. It offers programmable output ranges (+10 V, +10.2564 V, +10.5263 V), low noise (60 nV/√Hz), on‑chip reference buffers, and a digital I/O port, all operating from a 11.4 V to 16.5 V supply.
The datasheet provides detailed specifications such as 16‑bit resolution, ±1 LSB INL/DNL, 30 MHz serial clock capability, and a temperature range of –40 °C to +85 °C. It also includes functional block diagrams, timing diagrams, AC performance data, and ordering information for the 32‑lead TQFP package.
| Resolution | 16 bits |
|---|---|
| Integral Nonlinearity (INL) | ±1 LSB |
| Differential Nonlinearity (DNL) | ±1 LSB |
| Output Voltage Range | ±10.5263 V |
| Supply Voltage (AVpp/AVss) | 11.4 V to 16.5 V |
| Operating Temperature Range | –40 °C to +85 °C |
| Output Noise Spectral Density | 60 nV/V·Hz (10 kHz) |
It is a dual‑channel DAC, providing two independent 16‑bit outputs.
