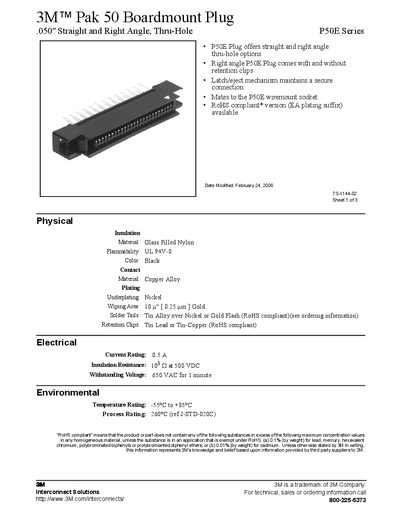

3M Pak 50 Boardmount Plug .050″ Straight and Right Angle, Thru-Hole P50E Series is a product launched by 3M. It has good insulation and fire resistance, and the rated current is 0.5A. The insulation resistance is 103 Ω at 500 VDC, the withstand voltage is 650 VAC for 1 minute, and the working temperature range is -55°C to +85°C. The processing temperature range is 260°C.
The Pak 50 Boardmount Plug provides both straight and right‑angle thru‑hole configurations. It is available with or without retention clips and features a latch/eject mechanism for a secure connection. The product complies with RoHS requirements and is supplied with various plating options.
Key specifications include a 0.5 A current rating, insulation resistance of 10³ MΩ at 500 VDC, and a withstanding voltage of 650 VAC for 1 minute. It operates from –55 °C to +85 °C, uses glass‑filled nylon insulation (UL 94V‑0), and copper‑alloy contacts plated with nickel and optional gold wiping.
| Current Rating | 0.5 A |
|---|---|
| Withstanding Voltage | 650 VAC for 1 minute |
| Temperature Rating | -55 °C to +85 °C |
| Process Rating | 260 °C (ref J‑STD‑020C) |
| Insulation Material | Glass Filled Nylon (UL 94V‑0) |
| Contact Material | Copper Alloy, Nickel underplating |
| Gold Wiping Area | 10 µin |
| RoHS Compliance | Yes |
The plug is rated for 0.5 A.
Yes, the product is RoHS compliant.
It can operate from –55 °C up to +85 °C.
The connector is offered with 20, 32, 40, 52, 60, 68, 80, and 100 contacts.
