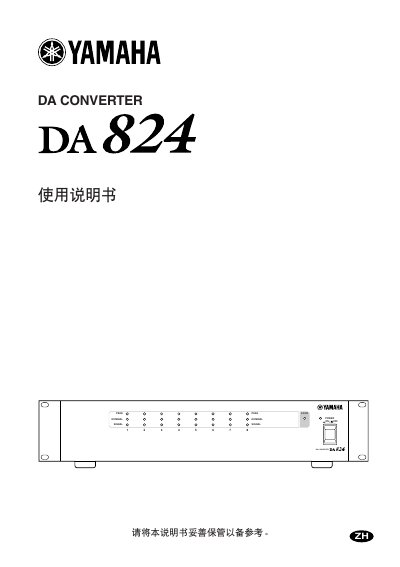

Yamaha DA824 DA Converter User Manual
The Yamaha DA824 is a high-performance 8-channel digital-to-analog converter featuring 24-bit converters and 128x oversampling, providing 100dB typical dynamic range. It supports various digital audio interfaces including AES/EBU, ADAT, and Tascam TDTE-1 via its compact YGDA (Yamaha General Digital Audio) interface.
The document covers safety precautions, installation requirements, and detailed operation instructions. It explains how to connect power and audio devices, use the front panel indicators (PEAK, NOMINAL, SIGNAL, LOCK), and configure output levels. The manual also includes information on RoHS compliance and specific liability terms. This manual is written in Chinese.
All Yamaha DA824 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does this product comply with EU RoHS regulations?
Yes, the product conforms to the RoHS regulations in the EU.
What is the operating temperature range for the DA824?
The unit must be used in an environment between 10°C and 35°C.
What is the operating temperature range for the DA824?
The unit must be used in an environment where the temperature is between 10°C and 35°C (50°F and 95°F).
How much space must be left behind the unit if it is rackmounted?
If mounted in a rack, you must leave at least 10 cm away from walls or surfaces.
