This is a user manual for DA CONVERTER. It introduces the product's usage and precautions.

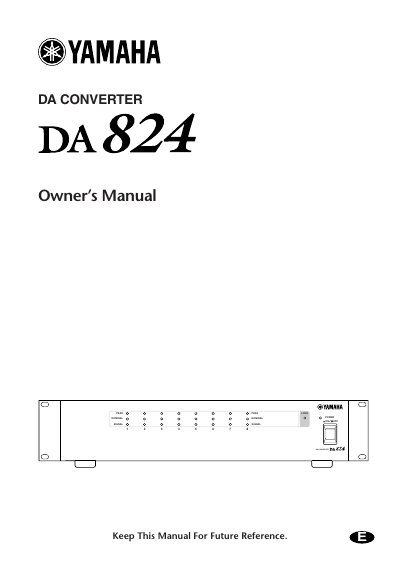

The Yamaha DA824 is a DA Converter designed for digital audio applications. This Owner's Manual covers the package contents, safety warnings, and basic setup procedures such as connecting the power cord and turning on the unit. It also details how to set the maximum output level and properly connect the device to an appropriate outlet with a protective grounding connection.
The document guides users through touring the front and rear panels of the DA824 and explains the specifications and installation of Digital I/O Cards. It provides various hookup examples for AES/EBU and ADAT connections, as well as detailed information on wordclocks, including hookup examples and termination procedures.
The unit must be used in an environment where the temperature is between 10°C and 35°C (50°F and 95°F).
If mounted in a rack, you must leave at least 10 cm away from walls or surfaces.
The DA824 should be allowed to acclimatize for about one hour before use.
