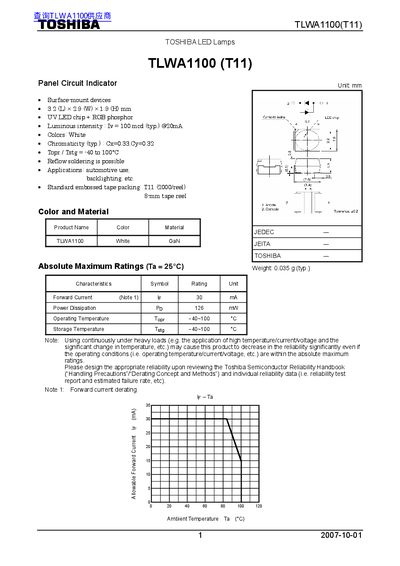

Toshiba TLWA1100 (T11) LED Lamp Datasheet

The TLWA1100 (T11) is a surface‑mount white LED lamp with a UV component. It offers a typical forward voltage of 3.5‑4.2 V at 20 mA, a forward current rating of up to 30 mA, and a luminous intensity of about 100 mcd. Electrical and optical characteristics such as reverse voltage, power dissipation, chromaticity (Cx≈0.33, Cy≈0.32) and operating temperature range (‑40 °C to 100 °C) are listed in the datasheet.

The handbook also details handling, storage, and soldering guidelines. Devices are packed in moisture‑proof aluminum reels; unopened packs may be stored at 5 °C‑30 °C with up to 90 % humidity, and opened packs must be assembled within 168 h at 5 °C‑30 °C/60 % RH. Recommended reflow soldering peaks at 240 °C, and specific cleaning solvents are provided. The LED is intended for general display lighting and is not suitable for sensor or optical‑communication applications.
