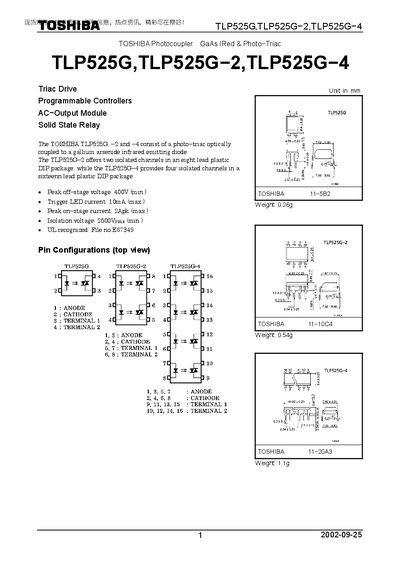

Toshiba TLP525G Series Photocoupler Datasheet
The TLP525G series are solid‑state relay (photocoupler) devices that combine a gallium‑arsenide infrared LED with a photo‑triac. The TLP525G‑2 offers two isolated channels in an eight‑lead plastic DIP package, while the TLP525G‑4 provides four isolated channels in a sixteen‑lead DIP package. These components are intended for general electronics applications such as computers, office equipment, and industrial robotics.
Key electrical ratings include a peak off‑stage voltage of 400 V (min), isolation voltage of 2500 V (min), forward LED current typical 20 mA, and a supply voltage rating of 120 VAC. The devices operate over a temperature range of –40 °C to 100 °C and feature a peak on‑state current capability of up to 2 A (100 µs pulse).
Toshiba TLP525G specifications
| Peak off‑stage voltage | 400 V (min) |
|---|---|
| Isolation voltage | 2500 V (min) |
| Forward LED current (typical) | 20 mA |
| Supply voltage | 120 VAC |
