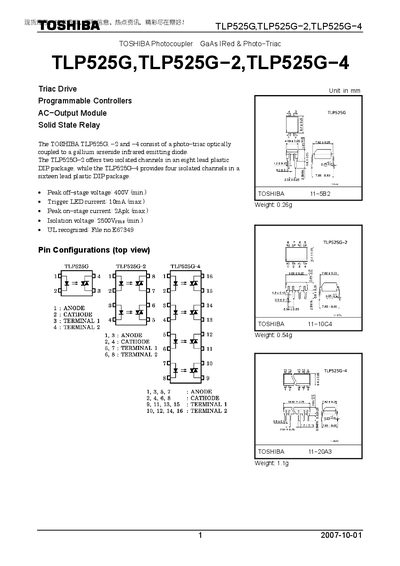

This datasheet lists the specifications of TLP525G,TLP525G−2,TLP525G−4, including maximum current, maximum voltage, minimum voltage, weight and other information.
The Toshiba TLP525G series are solid‑state relays that combine a gallium‑arsenide infrared LED with a photo‑triac. The TLP525G‑2 provides two isolated channels in an 8‑lead DIP, while the TLP525G‑4 offers four channels in a 16‑lead DIP.
The document lists absolute maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, and usage restrictions for general electronics applications.
| Isolation voltage | 2500 Vrms (min) |
|---|---|
| Peak off‑state voltage | 400 V (min) |
| Trigger LED current | 10 mA (max) |
| Forward current (If) | 50 mA (max) |
The isolation voltage is specified as 2500 Vrms minimum.
The TLP525G‑2 offers two isolated channels in an eight‑lead DIP package.
The recommended supply voltage is 120 Vac.
The absolute maximum forward current is 50 mA.
