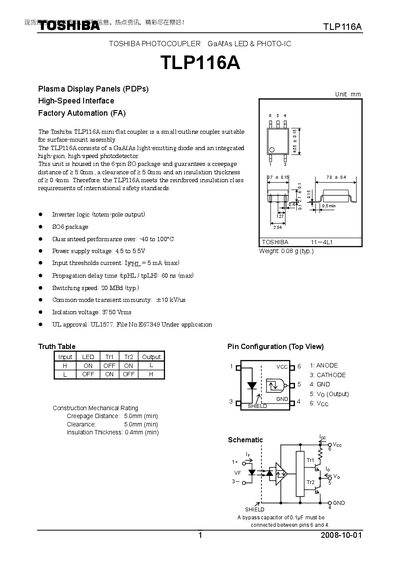

Toshiba TLP116A Photocoupler Data Sheet
The TLP116A is a mini‑flat, surface‑mount optocoupler that combines a GaAs light‑emitting diode with a high‑gain photodetector. It is supplied in a 6‑pin SO package and meets reinforced insulation class requirements (creepage 5 mm, clearance 5 mm, insulation 0.4 mm).
Key electrical characteristics include a supply voltage range of 4.5‑5.5 V, typical forward voltage of about 1.58 V at 10 mA, propagation delay up to 60 ns, isolation voltage of 3750 Vrms, and a typical switching speed of 20 MBd. The datasheet also provides absolute maximum ratings, recommended operating conditions, isolation and switching specifications, as well as packaging details for tape‑and‑reel shipment.
Toshiba TLP116A specifications
| Supply voltage (VCC) | 4.5 V – 5.5 V |
|---|---|
| Isolation voltage | 3750 Vrms |
| Switching speed (typical) | 20 MBd |
