TLP116A is a photocoupler produced by Toshiba. It has high light output, high gain and fast integrated circuit receiver chip, which is widely used in PDP, measuring instrument, control machine and other fields.
The TLP116A is a high‑output infrared LED and high‑gain, high‑speed phototransistor optocoupler packaged in a mini‑flat SO6 pin layout. It is intended for use in high‑speed digital interfaces, factory automation, and measurement equipment.

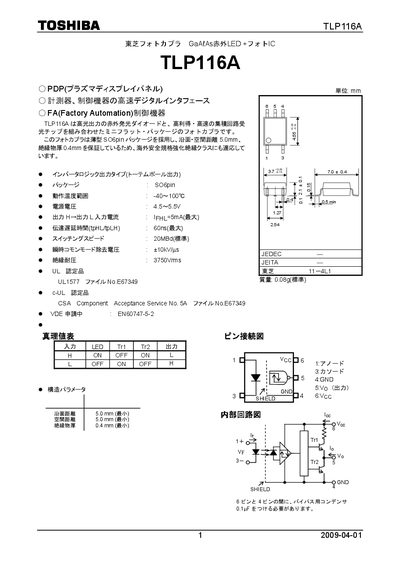

The datasheet lists absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, packaging and tape‑reel specifications, and safety/handling instructions. It also includes typical application circuits and test setups. This manual is written in Japanese.
| Supply voltage (VCC) | 4.5–5.5 V |
|---|---|
| Operating temperature range | -40 °C to 100 °C |
| Isolation voltage | 3750 Vrms |
| Propagation delay (tpHL) | ≤ 60 ns |
| Output voltage (VO) | 6 V |
| Output current (Io) | 10 mA |
| Power dissipation (Po) | 40 mW |
The recommended supply voltage is between 4.5 V and 5.5 V.
The device is rated for an isolation voltage of 3750 Vrms.
The propagation delay (tpHL) is specified up to 60 ns.
It can operate from –40 °C to +100 °C.
