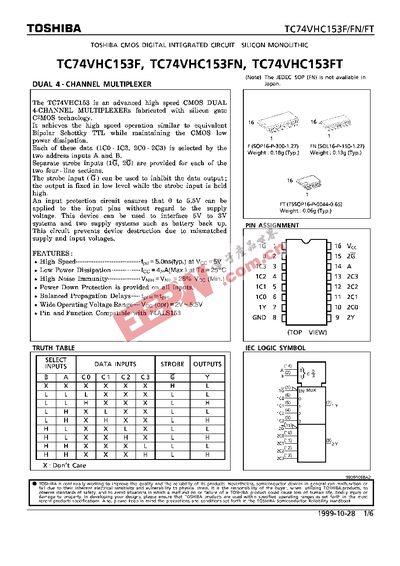

TOSHIBA TC74VHC153F/TC74VHC153FN/TC74VHC153FT Manual
The TC74VHC153F/FN/FT series are advanced high‑speed CMOS dual 4‑channel multiplexers fabricated with silicon‑gate C2MOS technology. They provide high‑speed operation comparable to bipolar Schottky TTL while maintaining low power dissipation, feature input protection for 0‑5.5 V pins, and include power‑down protection on all inputs.
The datasheet lists absolute maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and package dimensions for SOP‑16, SOL‑16, and TSSOP‑16 variants. Typical specifications include a supply voltage range of 0.5‑7.0 V, power dissipation of 180 mW, and storage temperature from –65 °C to 150 °C.
Toshiba TC74VHC153FT specifications
| Supply Voltage Range | 0.5 V – 7.0 V |
|---|---|
| Power Dissipation | 180 mW |
| Storage Temperature | -65 °C – 150 °C |
| Propagation Delay (typ.) | 10.2 ns (to LH) |
| Input Leakage Current | ≤0.1 µA (Vin = 5.5 V) |
| Typical SOP‑16 Package Weight | 0.189 g |
Source: TOSHIBA TC74VHC153F/TC74VHC153FN/TC74VHC153FT Manual
All Toshiba TC74VHC153FT documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TC74VHC153F/FN/FT?
The device operates with a supply voltage from 0.5 V to 7.0 V.
What is the typical weight of the SOP‑16 package?
The typical weight of the SOP‑16 package is 0.189 g.
What is the propagation delay of the TC74VHC153F series?
The typical propagation delay is 5.0 ns (standard) when Vcc = 5 V.
How much supply current does the device draw?
The device draws about 4 nA maximum at 25 °C.
What is the typical propagation delay of the TC74VHC153?
The typical propagation delay is 5.0 ns.
From: TOSHIBA TC74VHC153F TC74VHC153FN TC74VHC153FT TC74VHC153FK Manual
What supply voltage range can the device operate within?
It operates normally from 2.0 V to 5.5 V, with absolute maximum ratings of –0.5 V to 7.0 V.
From: TOSHIBA TC74VHC153F TC74VHC153FN TC74VHC153FT TC74VHC153FK Manual
