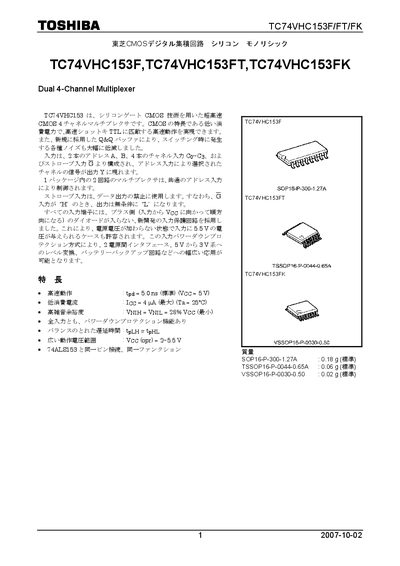

TOSHIBA TC74VHC153F TC74VHC153FT TC74VHC153FK Manual
The TC74VHC153F series is a dual 4‑channel CMOS multiplexer built with silicon‑gate CMOS technology. It offers fast operation (tpd = 5 ns) and low static current (≈4 nA) while providing input protection and power‑down features.
The device operates from 2.0 V to 5.5 V, supports temperatures from –40 °C to 85 °C, and is offered in three package styles (SOP‑16, TSSOP‑16, VSSOP‑16) with masses ranging from 0.02 g to 0.18 g. This manual is written in Japanese.
Toshiba TC74VHC153FK specifications
| Propagation delay (tpd) | 5.0 ns (standard, Vcc=5 V) |
|---|---|
| Supply current (Icc) | 4 nA (max, Ta=25 °C) |
| Operating voltage (Vcc) | 2.0 V to 5.5 V |
| Operating temperature | -40 °C to 85 °C |
| Package mass (SOP‑16) | 0.18 g (standard) |
| Package mass (TSSOP‑16) | 0.06 g (standard) |
| Package mass (VSSOP‑16) | 0.02 g (standard) |
Source: TOSHIBA TC74VHC153F TC74VHC153FT TC74VHC153FK Manual
All Toshiba TC74VHC153FK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the propagation delay of the TC74VHC153F series?
The typical propagation delay is 5.0 ns (standard) when Vcc = 5 V.
How much supply current does the device draw?
The device draws about 4 nA maximum at 25 °C.
What is the typical propagation delay of the TC74VHC153?
The typical propagation delay is 5.0 ns.
From: TOSHIBA TC74VHC153F TC74VHC153FN TC74VHC153FT TC74VHC153FK Manual
What supply voltage range can the device operate within?
It operates normally from 2.0 V to 5.5 V, with absolute maximum ratings of –0.5 V to 7.0 V.
From: TOSHIBA TC74VHC153F TC74VHC153FN TC74VHC153FT TC74VHC153FK Manual
