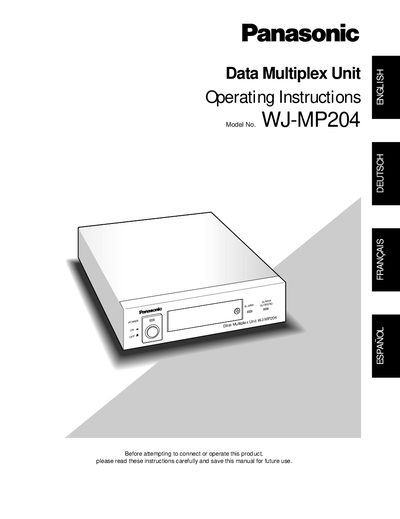

Panasonic WJ-MP204 Data Multiplex Unit Operating Instruction Manual
The WJ-MP204 Data Multiplex Unit enables remote control of up to 16 surveillance cameras when up to four units are daisy‑chained. It supports Panasonic Security Data mode and Camera Communication mode, offering camera selection, alarm reset/suspend, and video signal synchronization.
The manual covers safety precautions, installation steps, wiring diagrams for power, RS‑485, and video connectors, and detailed operation of front‑panel switches and menu functions. It also explains fuse replacement, plug wiring, and environmental limits for reliable use.
Panasonic WJ-MP204 specifications
| Input Power Source | 220‑240 V AC, 50 Hz |
|---|---|
| Operating Temperature Range | -10 °C to +50 °C |
| Maximum Relative Humidity | < 90 % |
| Fuse Rating | 13 A, BS1362 approved |
| Maximum Number of Cameras | 16 (with up to 4 units) |
| Maximum RS‑485 Cable Length | 1200 m (4000 ft) |
| Plug Type | Moulded three‑pin mains plug |
Source: Panasonic WJ-MP204 Data Multiplex Unit Operating Instruction Manual
All Panasonic WJ-MP204 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many cameras can be controlled with the WJ-MP204?
Up to 16 cameras can be controlled when up to four Data Multiplex Units are daisy‑chained.
From: Panasonic WJ-MP204 Data Multiplex Unit Operating Instruction Manual
What power source does the WJ-MP204 require?
It requires a 220‑240 V AC supply at 50 Hz.
From: Panasonic WJ-MP204 Data Multiplex Unit Operating Instruction Manual
