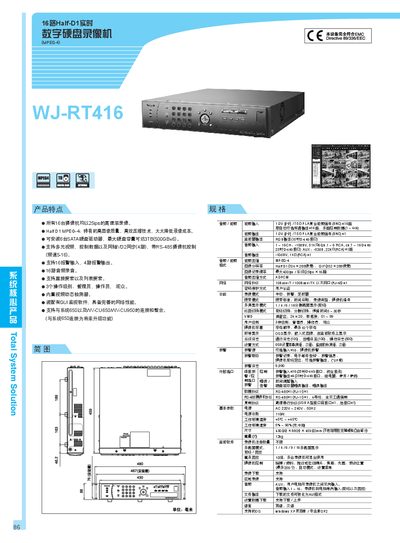

Panasonic WJ-RT416 User Manual
The WJ‑RT416 is a 16‑channel digital hard‑disk video recorder that records MPEG‑4 video at up to 25 ips per channel. It supports up to six SATA hard drives for a maximum storage capacity of 3 TB and offers BNC video inputs, audio inputs, and RS‑485 camera control.
The manual describes network connectivity via an RJ‑45 Ethernet port, alarm input/output configuration, multi‑screen display modes, and software installation for PC monitoring. It also includes details on power requirements, environmental limits, and physical dimensions. This manual is written in Chinese.
Panasonic WJRT416 specifications
| Audio inputs | 16 channels |
|---|---|
| Audio output | -10 dBV, 1 kΩ |
| Maximum hard‑disk capacity | 3 TB (6 × 500 GB SATA drives) |
| Power supply | AC 220‑240 V, 50 Hz |
| Operating temperature | +5 °C to +45 °C |
| Operating humidity | 5 % – 90 % (non‑condensing) |
| Dimensions (W×H×D) | 430 mm × 880 mm × 459 mm |
| Weight | 12 kg |
| Network interface | RJ‑45 10/100 Base‑TX |
| RS‑485 ports | 2 (camera control and data) |
