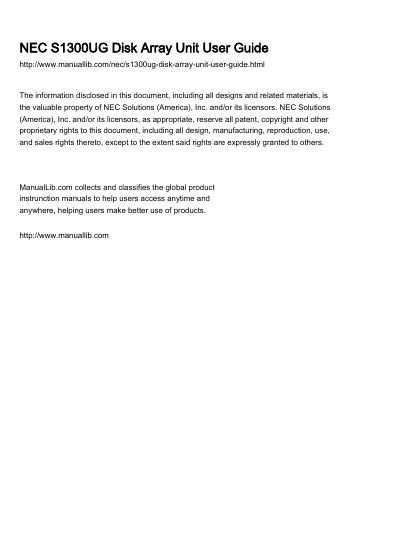

NEC S1300UG Disk Array Unit User Guide
This manual provides instructions for the NEC S1300UG Disk Array Unit (DAU). It covers the overview of the unit's features, including high-capacity cooling fans, power supplies, and various functionalities like hot spare and write cache. The guide details the setup process, including site selection, unpacking, rack mounting, and connecting host and disk enclosure interfaces.
The document also explains how to add and remove components such as hard disk drives, controller modules, and power supplies. It includes sections on routine maintenance, cleaning, and troubleshooting common startup problems and LED indicator statuses.
NEC S1300 specifications
| Maximum Capacity | 4TByte |
|---|---|
| Host Interface | 2Gbps Fibre Channel |
| Number of Host Ports | 2 Ports |
| Cache Memory | 1GByte/S1300 |
| Supported RAID Levels | RAID-0, 1, 5, 10 |
| Number of HDD | 3 to 30 |
| HDD Interface | 2Gbps Fibre Channel |
| Rotational Speed | 10,000rpm / 15,000rpm |
| Cabinet Dimensions (Base Unit) | 482x594x131mm |
| Weight (Base Unit) | 45kg or less |
All NEC S1300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum storage capacity of the NEC S1300?
The unit provides a maximum capacity of 4 TByte.
How many disk modules can the S1300 accommodate?
The unit can accommodate from 3 to 30 disk modules.
What class of digital device is this equipment?
This equipment has been tested and found to comply with the limits for a Class A digital device.
Where is the manufacturer located?
The manufacturer is located at 10850 Gold Center Drive, Suite 200, Rancho Cordova, CA 95670.
